Used Dye Machine

Located in South Carolina, US, we are an eminent Exporter and Supplier of Used Dye Machine. Procured from well-known sources, our Used Dye Machines function smoothly and have long service life. With us, stay assured of competitive prices and on-time deliveries. We are backed by a strong distribution network, which facilitates timely delivery of medium as well as bulk orders across different countries of the world.
Details :

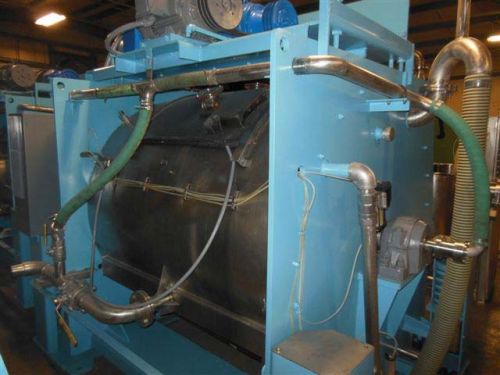

• Dye Machine / G.A. Braun / 600 lb. cap.
• (4) G.A. Braun Dye Machines, 600 lbs. max. capacity
• 3 ph, 60 cycles, with steam injection
• Cylinder diam x depth: 60" x 66", cylinder vol.: 107.9 cubic ft., cylinder door area Opening for loading: 600 sq. in., height of loading door above floor: 37"
• Extract motor-h.p. 25, extract speed-r.p.m. 554, wash motor-h.p. 10
• Automatice drain valve: 8", automatic inlet valve: 2", steam connection 1 1/2"
• Overall dimensions: 176"W x 102"D x 112"H
• Approx. shipping wt. skidded: 18,800 lbs
• Model 600NTDPV-SB, yr 1995, 600 volt, 2 pockets, no heat exchanger
• Model 600NTDPV-3-DC, yr 1999, 600 volt, 3 pockets
• Model 600NTDPV-2-DC, yr 1994, 600 volt, 2 pockets
