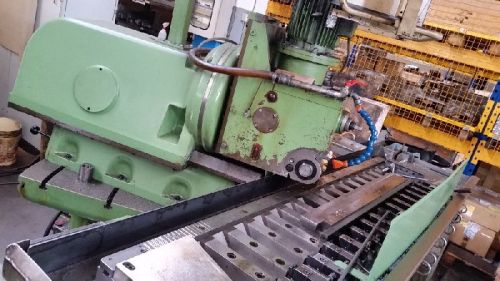

Used Knapp, Rack Cutting & Milling Machine

Desirous of buying Knapp Rack Cutting & Milling Machine? We are one of the eminent Suppliers of a wide range. We stringently make complete arrangements for the vigil examination of the inputs used for the products. By this, we are capable of bringing forth reliable products that are presented after complete inspection and examination by the experts.

Details :

• Make - Knapp.
• Model - Uzfm.
• Max Pitch - Modul 8
• Max Pitch Cast Iron - Module 10
• Max Length - 1750mm
• Size Of Table With Water Channel - 2100 X 460mm
• Size Of Table - 1850 X 250mm
• Horizontal Movement Of Milling Head - 260mm
• Min./max. Height Between Table & Spindle Centre - 136mm/410mm
• Range Of Variable Feeds - 0-300 Mm/min
• Rapid Traverse - 3 M/min
• Range Of Milling Speeds - 29-178 Rpm
• Swivel Of Spindle Head (Left) Relief Milled - 45 Degree
• Swivel Of Spindle Head (Right) - 30 Degree
• Swivel Of Saddle Either Side (Spiral Gearing) - 30 Degree
• Dia Of Arbor Inside Support - 25-40mm
• Max. With Of Cutter - 100mm
• Dia Of Arbor Outside - 22-32mm
• Max Capacity Width Of Cutter Outside - 50mm
• Min Dia Of Cutter - 105mm
• Max Dia Of Cutter - 165mm
• Indexing Spindle Pitch - Module - 4=12,5-66mm
• Weight Of Machine - 3500kg
