Contact SupplierWe are offering used topcon total station,
price: us $1,450 unit.
item condition : used

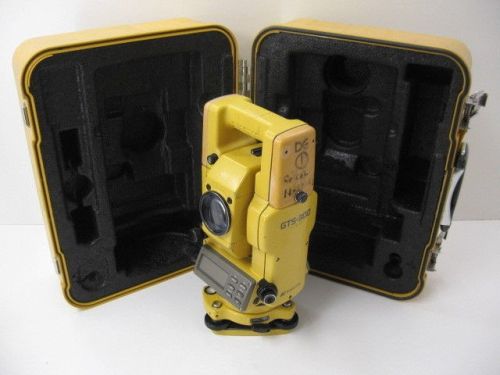

you are bidding on used topcon gts-302d total station with 3” angle accuracy. Data transfer to a personal computer or any data collectors is possible with the rs-232c interface. Unit featuresdual reading display on both side for more convenient read outs on field. Unit has a detachabletribrach for convenience of moving it to different set up locations.
item specifications
magnification: 30x
image: erect
minimum focusing distance: 1.3m4.3’
angle accuracy: 3”1 mgon
angle minimum display reading: 1”5”
angle units: switchable between meter or feet, angle degrees or gon
distance measurement: 1 prism: 8200’, 3prism: 10800’, 9 prism: 13800’
distance measurement precision: ±(3mm+2ppm)
distance measuring time: 2.5s (initial 4s) repeat mode
distance measuring time: : 0.5s (initial 3s) trackingcoarse mode
distance minimum display: 1mm0.005ft
display: dual
data inputoutput: rs-232c compatible, asynchronous serial
compensator: liquid type
compensating rangeaccuracy: ±3’1”
optical plummet: erect 3x
weight: 5.2kg, 11.5lbs without handle battery.
