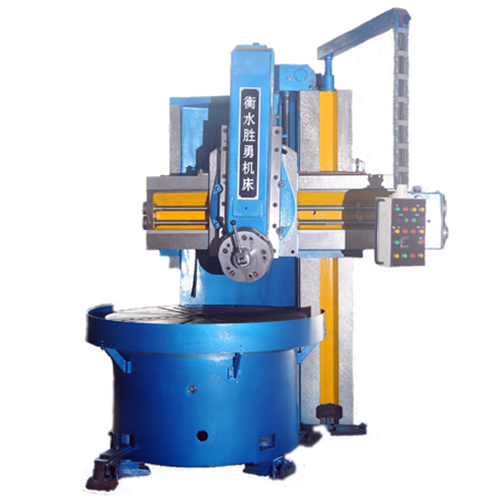

Used Vertical Turning Lathe Machine C5120

Product name: Used vertical turning lathe machine C5120
Features of Vertical turning lathe VTL machine
1 The Bed Casting is handled by vibration ageing,improving accuracy, rigidity and performance of lathe machine.
2 Excellent electrical components and hydraulic components come from the famous factory,including the domestic big factories and foreign manufacturers.
3 High-precision gears are with low noise and stable operation
Vertical turning lathe VTL machine model:
C5112C5116C5118C5120C5123C5125C5126
C5225C5232C5240C52505263 C5235
Technical specification of Vertical turning lathe VTL machine C5120
1 Table diameter 1800 mm
2 Maximum turning diameter 2000 mm
3 Maximum height of workpiece 1200 mm
4 Maximum weight of workpiece 6 t
5 Speed change of table 2.5-80 rmin
6 rotation speed of work table 16
7 Feed rates 0.8-86 mmmin
8 Step 12
9 Horizontal travel of tool post 1000 mm
Vertical travel of tool post 800 mm
10 Horizontal travel of side cutter bar 630 mm
Vertical travel of side cutter bar 1000 mm
11 Crossrail travel 700 mm
12 Maximum section scale of tool bar 30×40 mm
13 Power of main motor 30 kw
revolutions 1470 rmin
14 Power of Feed motor 1.31.7 kw
Revolutions 9401440 rmin
15 Machine weight 17.5 t
16 Overall dimensions(L×W×H) 3100×3000×3850 mm
