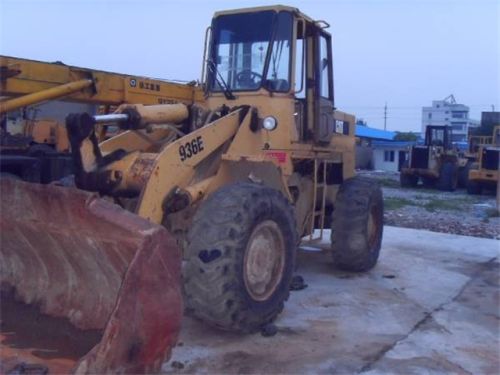

Used Wheel Loader, Brand Name : Caterpillar

We offer Used Wheel Loader .
1. Bucket
G. DUMP CLEARANCE AT MAX RAISE: 2879 mm
2. Dimensions
A. LENGTH WITH BUCKET ON GROUND: 7060 mm
B. WIDTH OVER TIRES: 2570 mm
C. HEIGHT TO TOP OF CAB: 3370 mm
D. WHEELBASE: 3020 mm
E. GROUND CLEARANCE: 392 mm
F. HINGE PIN - MAX HEIGHT: 3840 mm
H. REACH AT MAX LIFT AND DUMP: 970 mm
3. Engine
MAKE: Caterpillar
MODEL: 3304
GROSS POWER: 135.4 hp 101 kw
DISPLACEMENT : 7 L
4. Operational
OPERATING WEIGHT: 12295 kg
FUEL CAPACITY: 200 L
HYDRAUILC SYSTEM FLUID CAPACITY: 146 L
STATIC TIPPING WEIGHT: 9002 kg
TURNING RADIUS: 5950 mm
TIRE SIZE: 20.5-25 12PR
5. Transmission
NUMBER OF FORWARD GEARS: 4
NUMBER OF REVERSE GEARS: 4
MAX SPEED - FORWARD: 41.8 kmh
MAX SPEED - REVERSE: 46 kmh
6. Hydraulic System
RAISE TIME: 6.5 sec
DUMP TIME: 1.8 sec
LOWER TIME: 3.2 sec
7. Bucket
BREAKOUT FORCE: 28032 lb
DUMP CLEARANCE AT MAX RAISE: 2879 mm
BUCKET WIDTH: 2664 mm
BUCKET CAPACITY - HEAPED: 2.1 m3
BUCKET CAPACITY - STRUCK: 1.8 m3
8. Dimensions
LENGTH WITH BUCKET ON GROUND: 7060 mm
WIDTH OVER TIRES: 2570 mm
HEIGHT TO TOP OF CAB: 3370 mm
GROUND CLEARANCE: 392 mm
WHEELBASE: 3020 mm
HINGE PIN - MAX HEIGHT: 3840 mm
REACH AT MAX LIFT AND DUMP: 970 mm
9. PAYMENT AND SHIPMENT
In good working condition
Price: Negotiable
Locate in shanghai,China
Package: In bulk or by container
Deliver in 1-7 days after confirmation
Payment:TT 30% deposite ,70% before loading
10. AFTER-SALE SERVICE & WARM TIPS
(1)、We can arrange all for the shipment if you need once we made a deal.
(2)、We have a very professional team to solve all problems or buy some quick-wear parts for you before loading.
(3)、All photos and datas of products revealed here is based on truth of machines.
(4)、All machines are imported by normal way with complete procedures.
