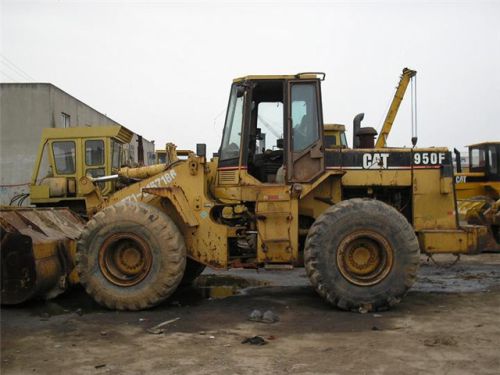

Used Wheel Loader, Brand Name : Caterpillar

We offer Used Wheel Loader.
1. Dimensions
A. LENGTH WITH BUCKET ON GROUND: 7689 mm
B. WIDTH OVER TIRES: 2753 mm
C. HEIGHT TO TOP OF CAB: 3520 mm
D. WHEELBASE: 3180 mm
E. GROUND CLEARANCE: 474 mm
F. HINGE PIN - MAX HEIGHT: 3953 mm
H. REACH AT MAX LIFT AND DUMP: 1103 mm
2. Engine
MAKE: Caterpillar
MODEL: 3116
NET POWER: 170 hp 126.8 kw
GROSS POWER: 180 hp 134.2 kw
POWER MEASURED @: 2200 rpm
DISPLACEMENT: 6.6 L
NUMBER OF CYLINDERS: 6
ASPIRATION: Turbocharged
7. Operational
OPERATING WEIGHT: 15730 kg
FUEL CAPACITY: 222 L
HYDRAUILC SYSTEM FLUID CAPACITY: 153 L
ENGINE OIL FLUID CAPACITY: 20 L
COOLING SYSTEM FLUID CAPACITY: 49 L
TRANSMISSION FLUID CAPACITY: 34 L
FRONT AXLEDIFF FLUID CAPACITY: 36 L
REAR AXLEDIFF FLUID CAPACITY: 36 L
STATIC TIPPING WEIGHT: 10543 kg
TURNING RADIUS: 6419 mm
OPERATING VOLTAGE: 24 V
ALTERNATOR SUPPLIED AMPERAGE: 50 amps
REAR AXLE OSCILLATION: 26 degrees
TIRE SIZE: 23.5-25 12PR
8. Transmission
TYPE: Planetary powershift
NUMBER OF FORWARD GEARS: 4
NUMBER OF REVERSE GEARS: 4
MAX SPEED - FORWARD: 39.3 kmh
MAX SPEED - REVERSE: 43 kmh
9. Hydraulic System
RELIEF VALVE PRESSURE: 20684.3 kPa
PUMP FLOW CAPACITY: 237 Lmin
RAISE TIME: 6.6 sec
DUMP TIME: 2.2 sec
LOWER TIME: 3 sec
10. Bucket
BREAKOUT FORCE: 159.3 kN
DUMP CLEARANCE AT MAX RAISE: 2941 mm
BUCKET WIDTH: 2811 mm
BUCKET CAPACITY - HEAPED: 2.9 m3
BUCKET CAPACITY - STRUCK: 2.5 m3
11. PAYMENT AND SHIPMENT
In good working condition
Price: Negotiable
Locate in shanghai,China
Package: In bulk or by container
Deliver in 1-7 days after confirmation
Payment:TT 30% deposite ,70% before loading
