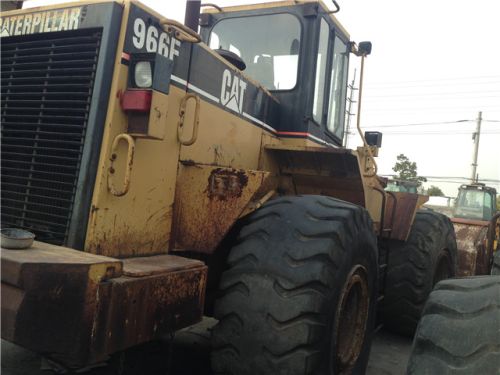

Used Wheel Loader, Brand Name : Caterpillar

We offer Used Wheel Loader.
1. Dimensions
A. LENGTH WITH BUCKET ON GROUND: 8366 mm
B. WIDTH OVER TIRES: 2935 mm
C. HEIGHT TO TOP OF CAB: 3585 mm
D. WHEELBASE: 3350 mm
E. GROUND CLEARANCE: 476 mm
F. HINGE PIN - MAX HEIGHT: 4118 mm
H. REACH AT MAX LIFT AND DUMP: 1398 mm
2. Engine
MAKE: Caterpillar
MODEL: 3306
NET POWER: 220 hp 164.1 kw
GROSS POWER: 235 hp 175.2 kw
POWER MEASURED @: 2200 rpm
DISPLACEMENT: 10.5 L
NUMBER OF CYLINDERS: 6
ASPIRATION: Turbocharged
3. Operational
OPERATING WEIGHT: 20485 kg
FUEL CAPACITY: 304 L
HYDRAUILC SYSTEM FLUID CAPACITY: 205 L
ENGINE OIL FLUID CAPACITY: 28 L
COOLING SYSTEM FLUID CAPACITY: 41 L
TRANSMISSION FLUID CAPACITY: 59 L
FRONT AXLEDIFF FLUID CAPACITY: 47 L
REAR AXLEDIFF FLUID CAPACITY: 47 L
STATIC TIPPING WEIGHT: 13982 kg
TURNING RADIUS: 6779 mm
OPERATING VOLTAGE: 24 V
ALTERNATOR SUPPLIED AMPERAGE: 50 amps
REAR AXLE OSCILLATION: 26 degrees
TIRE SIZE: 26.5-25 14PR
4. Transmission
TYPE: Planetary powershift
NUMBER OF FORWARD GEARS: 4
NUMBER OF REVERSE GEARS: 4
MAX SPEED - FORWARD: 37.6 kmh
MAX SPEED - REVERSE: 42.6 kmh
5. Hydraulic System
RELIEF VALVE PRESSURE: 20684.3 kPa
PUMP FLOW CAPACITY: 302 Lmin
RAISE TIME: 7.1 sec
DUMP TIME: 2 sec
LOWER TIME: 2.4 sec
6. Bucket
BREAKOUT FORCE: 215.5 kN
DUMP CLEARANCE AT MAX RAISE: 2845 mm
BUCKET WIDTH: 3107 mm
BUCKET CAPACITY - HEAPED: 3.6 m3
BUCKET CAPACITY - STRUCK: 3.1 m3
7. PAYMENT AND SHIPMENT
In good working condition
Price: Negotiable
Locate in shanghai,China
Package: In bulk or by container
Deliver in 1-7 days after confirmation
Payment:TT 30% deposite ,70% before loading
