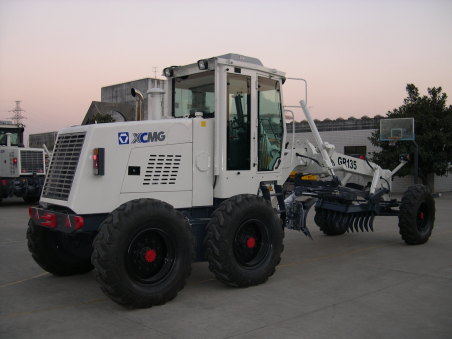

Contact Supplierwe are offering Used xcmg gr135 motor grader.
model: gr135
year: 2010
condition: brand new
working hours:2800
working weight: 11000kg
engine: 6bt5.9
rated output: 100kw2200rpm
travel forward speed: 5813203042(kmh)
overall length: 8015mm
overall width: 2380mm
overall height: 3050mm
min turning radius: 6.6m
blade length: 3710mm
blade height: 610mm
max lifting height of blade: 410mm
max depth of blade working: 535mm
max tractive force: 61.3kn
max roll angle of blade: 90 degree
cutting angle: 54-90 degree
revolution angle: 360 degree
max gradeability: 20 degree
working system pressure: 1.3-1.8mpa
max front wheel steering angle:-17~+17 degree
max front axle swing angle: -15~+15 degree
max swing angle of balance box: 16 degree (front and back)
max steering angle of frame: -27~+27 degree
price: us$45,000 fob shanghai
delivery time: in 7 days after confirmation
