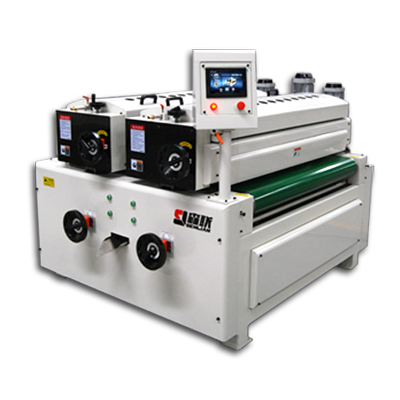

Automatic UV Double Roller Coating Machine, Brand Name : SENLIAN

Double roller coating machine
function:
it applies the double rubber roller and double stainless steel roller to cover the liquid paint on board circularly which without any paint waste and environmentally friendly. When the two rollers rotating clockwise at the same time, they can coat the film even and thin, almost from 0.002mm to 0.004mm once, and coat the film more thick, almost from 0.004mm to 0.006mm when the second roller rotating counter clockwise.
Â�¢ application filed:
furniture, door, wardrobe, cupboard, floor, decoration, building insulation, etc.
Â�¢ application board:
solid wood board, ply, mdf, mfc, pb, glass, pvc, marble, calcium silicate board, cement fiber board, mineral wool board, mgo board, aluminium sheet, etc.
Â�¢ application paint:
uv, pu, pe, water paint, fluorocarbon paint, glue, special paint, etc.
Technical parameters
optional working width 600mm800mm1300mm
max working thickness 100mm
min working length 300mm
working speed 0-25mmin
paint pump 0.6mpa, 10l,
stainless steel roller î¦200mm
rubber roller epdm, ï�205mm, h45 degrees
full power 9.74kw 380v
estimated weight 1200kg1400kg2000kg
overall dimensions 1700*1700*1600mm
1700*1900*1600mm
1700*2300*1600mm
main parts
electric motor bmemb
frmain partsequency converter shihlin
main bearing nsk from japan
conveyor ammerraal from holland
paint pump vacuum diaphragm pump
electrical appliance chint
control system intelligent control system, lcd screen
optional rollers for different process epdm roller, polyurethane rubber roller, silicone rubber roller, laser rubber roller, sponge rubber roller, corrugated roller
