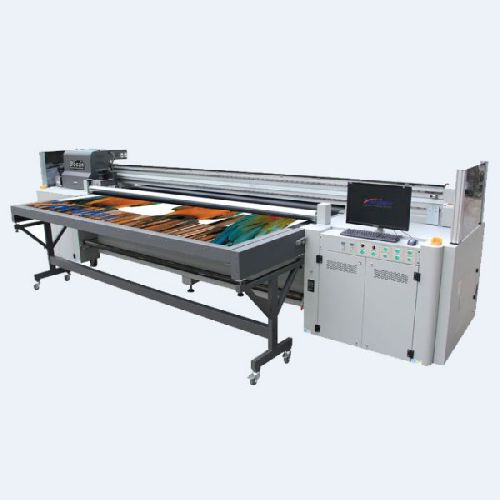

This machine is our UV Hybrid Printer. Its printing width is 3.2m. With the extension tables at the back and front, it can print unlimited length for the Rigid materials. Using the UV ink it can print excellent images on various rigid medias, such as glass, acrylic, wood, PVC foam board, KT board, MDF, alunimum, cellphone case, ceramic tiles, and flexbile materials like banners, vinyl, mesh, and so on. . Also, it offers various ways of printing the white color. It can print the three-layer spot colors which means it can print color-white-color at one time!
High resolution and high-quality piezo electric printhead can achieve excellent production performance and vivid bright colors
4 color printing: Y M C K
5 color printing: Y M C K+WÂ
6 color printing: Lc Lm Y M C KÂ
7 color printing: Lc Lm Y M C K W or Lc Lm Y M C K W WÂ
8 color printing: Lc Lm Y M CK W VÂ
Excluding the use of VOC (Volatile Organic Compounds) in the UV curable ink. The ink is environmental friendly and no smellÂ
Combines sheet-to-sheet with roll-to-roll printing functionÂ
Max media width is 3.2mÂ
Vacuum belt table for accurate feeding and convey of rigid and flex materialÂ
Retractable linear alignment bar for rigid mediaÂ
Automatic rotary motor can achieve optimal tension distributingÂ
Drawer-type UV lamp cassette makes it easy to replace the UV lampÂ
With advanced Automatic Height Detector which can detect the material thickness and find a good height position for best quality printingÂ
Carriage is with a crash sensor with high sensitivity to ensure that the printhead will not be accidentally damagedÂ
The white ink catridge is with the automatic stiring and circulation system, which avoids the clog of the White printhead.Â
Â
Model : S3210
Catagory:Â UV Hybrid Printer
Printing Size :3.2m x unlimited
Print Technology :drop-on-demand piezo electric inkjet
Printhead :KM-512MH-14PL/KM-1024MHB-14PL/Ricoh Gen5 7PL
Printhead Control : Printhead temperature and voltage are adjustable in software/p>
Ink Type :Â UV curable Ink
Ink Reservoir : Refillable on the fly while printing/2000ml
Rip Software:Â Photo Print/ONYX/Caldera
Color Management : ICC based color, curves adjustment, density adjustment
File Format : Tiff, Jpeg, Postscript, eps, pdf
Media Thickness :Â 1-60mm
Printhead QTY :
KM-512MH-14PL -4-8pcs
KM-1024MHB-14PL - 4-16pcs
Ricoh Gen5 - 4pcs/8pcs
Resolution :
KM-512MH-14PL/KM-1024MHB-14PL - 720 x 720 dpi, 720 x 1080 dpi, 720 x 1440 dpi
Ricoh Gen5 - 600 x 600 dpi, 600 x 900 dpi
Printing Speed :
KM-1024MHB-14PL (two rows) - 4 pass 42 sqm per hour, 6 pass 28 sqm per hour, 8 pass 20 sqm per hour
Ricoh Gen5 (two rows) - 4 pass 36 sqm per hour, 6 pass 24 sqm per hour, 8 pass 18 sqm per hour
Print Colors:Â 4 colors (CMYK), 6 colors (Lc Lm CMYK), White/Varnish optional
Drying System : UV Lamp with three power levels 　
Rigid materials: glass, acrylic, PVC foam board, KT board, Wood, WPC, Metal panels,ceramic tiles, MDF, etc. Flexible materials: Paper, advertising banners, wall paper, Mesh, self-adhesive vinyl
3 years (use Docan ink)
Dimensions : 5.65 x 2.89 x 1.81m　
Weight : 3950kg
Power Supply : 50/60Hz 220V(10%)>30A
Operation Environment : 20°C to 28°C
Humidity 40% to 60%
one year
