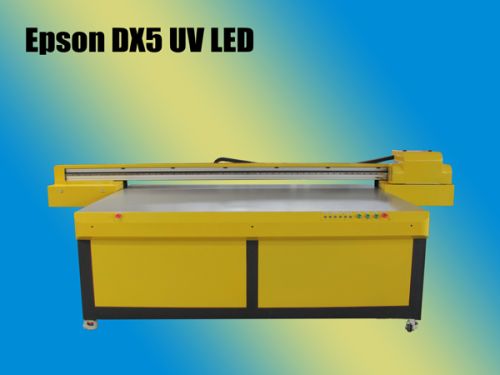

UV Large Format Flatbed Printer

we are offering Uv Large Format Flatbed Printer.
Advantages
LED UV lamp without preheat boot on the run, save time and energy;
LED UV lamp for ink curing, environmental and no-odor release, instant curing, and not easily fade;
EPSON DX5 printhead, Hyperfine printing and high efficiency with 1440dpi;
Z-axis height can easily lift up and down, adjust the height between the printhead and the media automatically; (exclusive patent)
The gantry can move with the ink box to avoid to turn down the Z-axis to suck ink to go on working for easy operation and save time; (exclusive patent)
More Applications Printed materials could be: glass, ceramic, ceiling, aluminum sheet, wood board, door sheet, metal panel, billboard, acrylic panel, Plexiglass, paper board, foam board, PVC expansion board, corrugated cardboard; flexible materials such as PVC, canvas, cloth,carpet, sticky note, reflective film, leather etc. all kinds sheet materials and coiled materials. Application areas
Decoration industry, glass industry, sign industry, exhibition industry, rigid paperboard packing industry, leather, art-ware industry, furniture industry etc.
Specifications
Product Model UV2513
Printhead Technology Drop-on demand piezo electric
Printhead control Printhead voltage is software adjustable
Printhead Type EPSON DX5 Printhead
Printhead Number 1/2
Ink Characteristics UV Curing Ink
Ink reservoirs Refillable on the fly while printing/1000ml per color
LED UV Lamp more than 20000-hours life
Color Control ICC based color,curves and density adjustment
Printhead arrangement CMYK/C M Y K LK LLK LC LM
CMYKW/C M Y K LK LLK LC LM W
CMYK*2/C M Y K LK LLK LC LM *2
Printhead Cleaning System Automatic Cleaning System, Automatic Dry-preventing System
Guide Rail Taiwan HIWIN(THK optional)
Working Table Vacuum Sucking
Printing Size UV2513:2.50X1.30m
Print Interface USB2.0
Media Thickness within 100mm, higher can be tailored
Printing Resolution&Speed 360x720DPI(4pass) 25Sq.m/h(2 EPSON DX5 Printhead)
360x1080DPI(6pass) 20Sq.m/h(2 EPSON DX5 Printhead)
720x720DPI(8pass) 15Sq.m/h(2 EPSON DX5 Printhead)
720x1080DPI(6pass or 12pass) 12Sq.m/h(2 EPSON DX5 Printhead)
720x1440DPI(8pass or 16pass) 6Sq.m/h(2 EPSON DX5 Printhead)
Life of printed image 5 years(outdoor),10year(indoor)
File Format TIFF,JPEG,Postscript,EPS,PDF etc.
RIP Software UltraPrint
Power Supply 220V 50/60Hz(10%)
Power 2000W
Operation Environment Temperature 20 to 30℃,Humidity 40% to 60%
Equipment Dimension UV2513:3.90(L)X1.85(W)X1.30(H)m
Equipment Weight UV2513:800kg
Warranty 1 year exclude the Print head,Ink filter, Ink pump
After-sale Service 24-hour on-line realtime technology service
