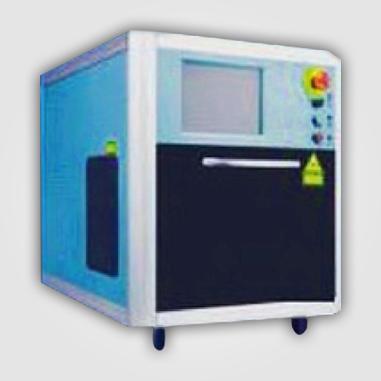

UV Laser Marker

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

UV Laser marker is equipped with a 355 nm UV laser that is the end off three times the frequency of diode end pump Laser. It has high conversion rate between laser and electricity.UV laser has super precision marking capability with low heat affected zoneUV Laser is widely using in Drilling of tiny holes, Flexible PCB, LCD, TFT marking and slicing. Silicon wafer slicing etc.

View More Details

Send Enquiry

Company Information

Starlasertechnolgy

Odhav, Ahmedabad, Gujarat

View Number

Member Since 11 Years
Nature of Business Retailer
Year of Establishment 2011

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Model	UV3	UV5	UV8
Laser	UV Laser	UV Laser	UV Laser
Wavelength	355 nm	355 nm	355 nm
Laser Power	3W	5W	8W
Beam Quality	≤ 1.2 M²	≤ 1.2 M²	≤ 1.2 M²
Min. Line Width	20 μm	20 μm	20 μm
Min. Char. Size	0.15 mm	0.15 mm	0.15 mm
Modulating Frequency	25 ~ 100 Khz	25 ~ 100 Khz	25 ~ 100 Khz
marking Area	100 x 100 mm (Std)	100 x 100 mm (Std)	100 x 100 mm (Std)
Marking Speed	≤ 7000 mm/s ≤	≤ 7000 mm/s ≤	7000 mm/s
Cooling System	Water	Water	Water
Power Consumption	≤ 1.5 KW ≤	≤ 1.5 KW ≤	1.5 KW
Electrical requirement	220VAC / 50 Hz / 15A	220VAC / 50 Hz / 15A	220VAC / 50 Hz / 15A
Dimensions ( L x W x H )	500 x 500 x 650mm	500 x 500 x 650mm	500 x 500 x 650mm
