    UV Light Curing System

    • Supply TypeManufacturer, Exporter, Supplier, Retailer
    • Preferred Buyer Location All over the world

    From the river of our pearl products, we bring forth for our clients U.V. Curing system that uses UV inks for printing on plastic, metalized paper and electronic circuit boards. Manufactured using....
    View More Details
    Send Enquiry

    Company Information

    • calendar Member Since 16 Years
    • building Nature of Business Retailer

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    • Product Details

    • Company Details

    no_img_icon

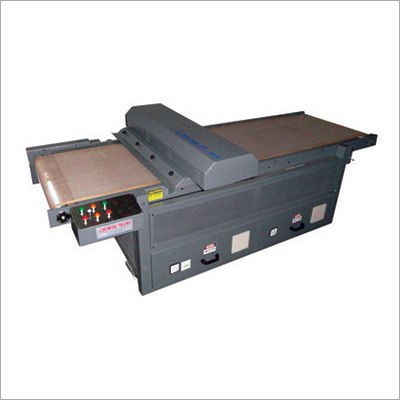

    From the river of our pearl products, we bring forth for our clients U.V. Curing system that uses UV inks for printing on plastic, metalized paper and electronic circuit boards. Manufactured using high quality components, these U.V Curing Machines is designed in a manner so that it can be adapted on any coating process, namely, sheet fed offset, letter press, silk screen and varnishing machine. Further, provided U.V. Curing System can be purchased from us at most competitive price.


    Features:

    • Air cooling system
    • COLD UV Curing system for heat sensitive substrate
    • Delivery tray
    • Easy access to lamp housing with quick and easy to fit lamps
    • Enhanced durability
    • High pile delivery/ stacker delivery
    • Hood safety interlock & thermal cut off
    • Hour counter & Ampere meter
    • I.R.Drier
    • Over current sensor and Belt jamming sensor
    • Powder coated finish
    • PTFE coated Heat Resistant belts
    • Sheet counter
    • Two lamp system on specific order
    • Up to three power levels for lamp output power
    • UV Curing system for UV Ink printing
    • Vacuum suction to hold down the substrates
    • AC Frequency drive Conveyor of Variable speed with 0 to 75 Mtrs./Min speed

    The 'Grafik Tech' U.V Curing Machines can be fitted on Rotary Printing Processes i.e., Flexo, Roto-Gravure and Web Offset Machines for both full coating and spot coating. The "Grafik Tech" U.V. Curing System can be designed for any other specific purpose and client's requirements, for both Online and Off-line uses. The Lamps used are ozone free Lamps.



    Model

    Curing Width in inches

    Conveyor Size in inches

    Lamp Power in w/inch

    Power Consumption UV (Full Power) single Lamps

    Power Consumption
    IR - 3 Lamps

    GT 18

    18

    22 x 72

    300

    5.4 kw

    6 kw

    GT 25

    25

    29 x 72

    300

    7.5 kw

    7.5 kw

    GT 30

    30

    34 x 72

    200/300

    6/9 kw

    9 kw

    GT 32

    32

    36 x 72

    300

    9.6 kw

    9 kw

    GT 40

    40

    44 x 72

    300

    12 kw

    12 kw
