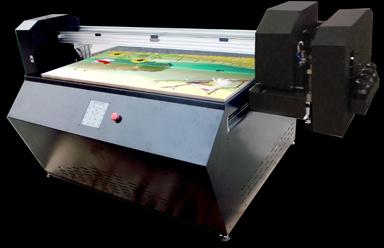

UV Multifunctional Flatbed Printer

We are offering uv multifunctional flatbed printer.
haiwn-ddo uv3 digital
multifunction printing machine performance
uv platform ink jet printers use the unique heating function in nozzles, support a more accurate temperature control, ensure continuous voltage stability, reducing scrap rate. Applicable materials are wide, such as: hard media glass, ceramic tile, ceiling, aluminum, plank, door plate, panels, acrylic board, organic glass, kd board, pvc expansion sheet, corrugated cardboard, etc. Flexible media such as: wallpaper, reflective film, canvas, carpet, leather, paper, pvc cloth, etc.
� adopt the latest led cold light technology, no radiation
� light-up instantly without preheating, low printing material surface temperature & no deformation
� power consumption 80 w, traditional mercury lamp 3 kw
� led lamps have 25000-30000 hours long life
� the latest generation of epson nozzle, ink point size distribution intelligently, have higher print precision than traditional uv machine.
� a print head has eight column orifices, double 4 color high-speed printing
� haiwn uv flatbed quality servo, screw guide rail system
� compared with the traditional mercury lamp, uv flat-panel printers, do not contain mercury, also won't produce ozone, safer, more environmental.
� the water (water cycle) way, in the hot summer without air conditioning, it also can have very good light curing effect.
model size print size price (usd)
haiwen-dd0 uv3 2.19m x 3.18m x 1.07m 1.25m x 2.5m 12500
print head 180 nozzles/colorã� double 4 color, use smart transform drops technology print head technology drops controllable epson micro piezoelectric technology; corrosion resisting
color mode double 4 color (cmyk+cmyk) noise no more than 50db
print height 10cm�adjustable, oem order� port usb2.0/1.1port & 100 base-t ethernet interface
ink environmental protection uv light curing ink ram 128m
environment temp�5�32��humidity�20�80� power ��working mode�600w
ready mode �no more than 50w
voltage ac100ï½�120v/ac220ï½�240vself â��adaption,50/60hzâ±1hz curing way led lamp curing,25000-30000 hours
super long use time
characteristics
1. color vivid and perfect
2. Use led cold light uv solidify lamp system, no radiation.
3. High quality servo, screw guide rail system
4. environmental protection uv ink, no pollution, low energy consumption, really realize green production
5. Uv protection, 3-5 years outdoors no fading & waterproof.
6. double 4 color solutions, speed faster
7. compared with the traditional mercury lamp uv flat-panel printers, do not contain mercury, also won't produce ozone, safer, more environmental
8. The traditional mercury lamp uv flat-panel printers, need to warm up in advance. Haiwn uv printer print directly, no need waiting.
9. little calorific value, solve the mercury lamp equipment calorific value big problem
10. Cold light, no radiation, product surface temperature is low, printing products has no deformation: solve the materials like acrylic, organic board, film, etc. Which cannot resist high temperature and cause deformation problems.
11. energy saving: led lamp power for 80 w, traditional mercury lamp for 3 kw.
12. led lamp has long life for 25000-30000 hours, and domestic mercury lamp for 300 hours, import mercury lamp for 1200 hours.
13. the water ( water cycle) way, in the hot summer without air conditioning, it also can have very good light curing effect .and air cooling way in the hot summer has poor cooling effect, leading to uv lamp play abnormally, thus influence light curing effect.
14. printing products of haiwn uv printer has bump feel effect.
15. industry�
decoration, decoration industry, glass industry, the furniture industry, and moving door sign industry, the exhibition industry, hard cardboard packaging industry, leather textile industry, etc
printing materials widely, flexible medium such as: timely post, pvc, reflective film, canvas, carpet, leather, etc.; rigid medium such as glass, ceramic, tile, metal, ceiling, aluminum, board, door plank, acrylic, organic glass, foam board, corrugated cardboard, etc.
16. more suitable for mass industrial printing needs.
