Contact SupplierWe are offering uv power meter.

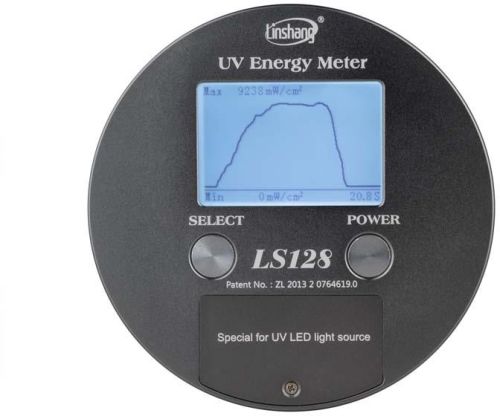

Ls128 uv power meter can measure the uv energy density, uv irradiance and temperature at the same time. It can be used to:
1. detect the uv energy density, uv irradiance and temperature of uv curing machine which using uv led light source.
2. measure the uv irradiance and temperature of machines which using uv led light source, such as uv drying machine, exposure machine and printing machine etc.
I. Parameters
1. Spectral range: 340nm --- 420nm
2. Irradiance measuring range: 0 --- 20,000mwcm2
3. Irradiance resolution: 1 mwcm2
4. Energy measuring range: 0 --- 999999mjcm2
5. Energy measuring accuracy: ±10%, ±5% (typical)
6. Temperature measuring range: -55°c --- +125°c
7. Sampling speed: 2048 timessecond
8. Irradiance data storage interval: 256 timessecond
9. Temperature data storage interval: 16 timessecond
10. Recording period: 240 seconds
11. Power supply: 2 aaa alkaline dry batteries
12. Display: 240*160 dot matrix lcd
13. Dimension: diameter 120mm * thickness 13 mm
14. Weight: 327g
