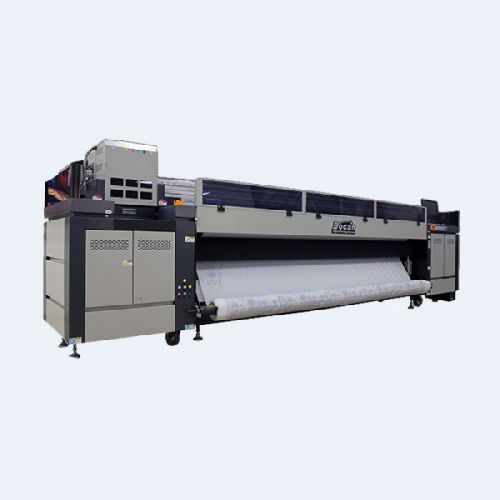

Contact SupplierThis machine is our UV Roll-to-Roll Printer. Its printing width is 3.2m. Using the UV ink (with the VOC) it can print excellent images on various flexbile materials like banners, vinyl, mesh, and so on. The ink is environment friendly. The printhead is Kyocera-KJ4A-3.5PL/ KM-1024ISHBE-6PL, 6 printing colors Lc Lm Y M C K.
High resolution and high-quality piezo electric printhead can achieve excellent production performance and vivid bright colors
4 color printing: Y M C K
5 color printing: Y M C K+WÂ
6 color printing: Lc Lm Y M C KÂ
7 color printing: Lc Lm Y M C K W or Lc Lm Y M C K W WÂ
8 color printing: Lc Lm Y M CK W VÂ
Excluding the use of VOC (Volatile Organic Compounds) in the UV curable ink. The ink is environmental friendly and no smell
Combines sheet-to-sheet with roll-to-roll printing functionÂ
Max media width is 3.2m
Vacuum belt table for accurate feeding and convey of rigid and flex materialÂ
Retractable linear alignment bar for rigid mediaÂ
Automatic rotary motor can achieve optimal tension distributingÂ
Drawer-type UV lamp cassette makes it easy to replace the UV lampÂ
With advanced Automatic Height Detector which can detect the material thickness and find a good height position for best quality printing
Carriage is with a crash sensor with high sensitivity to ensure that the printhead will not be accidentally damaged
Â
Model : R3200
Catagory:Â UV Roll-to-Roll Printer
Printing Size : 3.2m
Print Technology : drop-on-demand piezo electric inkjet
Printhead : Kyocera-KJ4A-3.5PL/ KM1024-SHE-6PL
Printhead Control : Printhead temperature and voltage are adjustable in software
Ink Type :Â UV curable Ink
Ink Reservoir : Refillable on the fly while printing/2000ml
Rip Software:Â Photo Print/ONYX/Caldera
Color Management : ICC based color, curves adjustment, density adjustment
File Format : Tiff, Jpeg, Postscript, eps, pdf
Media Thickness :Â 1-100mm
Printhead QTY :
Kyocera-KJ4A - 2-7
KM-1024ISHBE-6PL - 4-8pcs
Resolution :
Kyocera-KJ4A-3.5PL - 604 x 1200 dpi, 604 x 1800 dpi
KM-1024ISHBE-6PL - 4pcs/8pcs, KM-1024ISHBE-6PL
Printing Speed :
Kyocera-KJ4A-3.5PL (Only support one rows) - 4 pass 34 sqm per hour, 6 pass 22 sqm per hour, 8 pass 17 sqm per hour
KM-1024ISHBE-6PL - 4 pass 29 sqm per hour, 6 pass 19 sqm per hour, 8 pass 15 sqm per hour
Print Colors:Â 4 colors (CMYK), 6 colors (Lc Lm CMYK), White/Varnish optional
Drying System : UV Lamp with three power levels
Paper, advertising banners, wall paper, Mesh, self-adhesive vinyl
3 years (use Docan ink)
Dimensions : 5.32 x 1.1 x 1.65m
Weight : 2680kg
Power Supply : 50/60Hz 220V(10%)>30A
Operation Environment : 20°C to 28°C
Humidity 40% to 60%
one year
