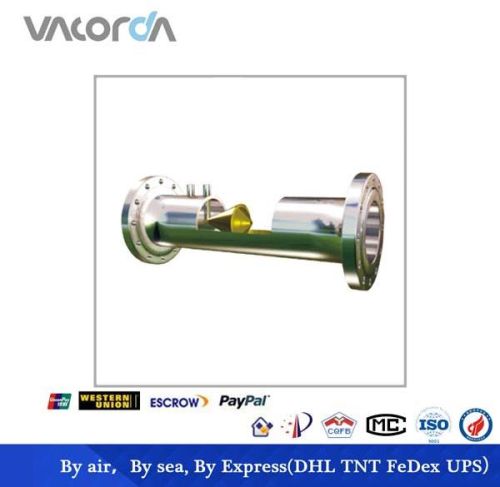

V-Cone Flow Meter

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

V-Cone Flow Meters measure the flow rate of different varieties of liquids over a wide range of Reynolds numbers. The company is instrumental in manufacture and supply of V-Cone Flow Meter in China. The offered V-Cone Flow Meter has a minimum flow velocity of 0.1m and repeatability of ±

View More Details

Send Enquiry

Specifications

Accuracy class	0.5
Long-term stability	± 0.1% F.S / Y
Repeatability	± 0.1%
Minimum flow velocity	0.1m
Turndown ratio	Normally15:1; max50:1
Reynolds number range	8 × 103 ~ 5 × 106
Operating pressure	≤ 16MPa, 42MPa(maximum)
Operating temperature	-160 ^oC ~ 700 ^oC
Nominal diameter	φ15~φ2000 (1/2^o~120^o)
Environment temperature	≤ 80 °C
Relative humidity:	5 ~ 85%
Output signal:	4 ~ 20mA
Power supply	24VDC
Voltage of DP transmitter	24VDC
Current of DP transmitter	4mA ~ 20mA
Voltage of intelligent flow totalizer	220VDC
Current of intelligent flow totalizer	4 ~ 20mA
Communications mode of DP transmitter	HART&BRAIN
Communications mode of smart flow computation indicator	RS232 & RS485
