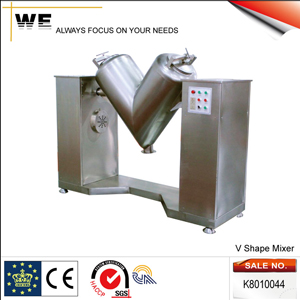

V Shape Blender

We are offering v shape blender, v shape mixer etc.
main description:
this series mixer is made up of a container formed by two cylinders welded in a v shape. Compared with the shaft and container's shape, it is asymmetrical. The powder grains will continuously and repeatedly change their places, be dispersed, and combine in the inclined cylinder under the force of circumgyration. Materials will be randomly transferred from one place to another place and the powder grains will slip, pile and move to the surface repeatedly and be cut and scattered time and again. Then the mixing is complete.
main features:
1. The v shape mixer machine can load material with vacuum feeder and work at close condition. There is no drive part, no hidden corner and clean inside. It meets the demand of "gmp" standard.
2 its application is wide, and it can be equipped with forcing stirrer inside to adapt these materials in fine powder, block shape or containing some moisture.
main parameters:
type barrel capacity (l) feed volume coefficient max feed weight (kg) agitation speed mix with time (min) motor power (kw)
ku-5 5 0.4 1.5 60 6-8 0.25
ku-8 8 0.4 2.5 60 6-8 0.25
ku-14 14 0.4 4 46 6-8 0.37
ku-100 100 0.4 28 15 6-8 1.1
ku-200 200 0.4 55 12 6-8 1.5
ku-300 300 0.4 80 12 6-10 1.5
ku-500 500 0.4 140 12 6-10 2.2
ku-1000 1000 0.4 300 12 6-10 3
ku-1250 1250 0.4 375 10 6-10 3.5
ku-1500 1500 0.4 450 10 6-10 4
