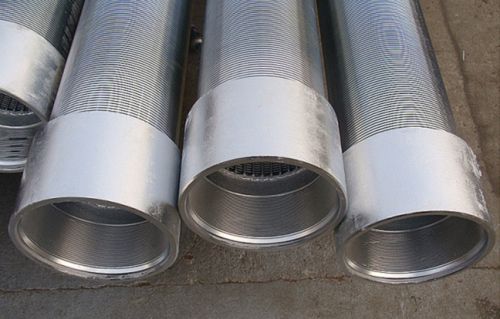

V Wire Screen

V Wire screens are fabricated in pipe form from wires. A V Shaped profile wire is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The Pitch of winding gives different spacing between two adjacent turns of wire, This space becomes passage for water to enter. One end of the screen is closed by a flat screen pf same slot opening and the other end is fitted with a threaded ring and end cap for resting on the pump.The submersible pump with motor is to be fitted inside this jacket. Thus it ensures that water reaching the pump is filtered through screen and clear water column is available to pump. This reduces wear and tear og pump impellers due to sand in an existing tube-well.

Salient Feature

• Continuous Slots
• Non Clogging Slots
• Very Large & Open Area
• Better Sand Filtration
