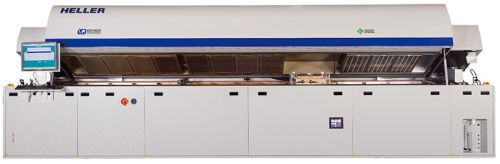

Semi Automatic Electric Vacuum Assisted Heller Reflow for Drying Process

Product Details

Driven TypeElectric
Packaging TypeLight White
ConditionUsed
Automatic GradeSemi Automatic
Power6-9kw
ApplicationDrying Process
CertificationCE Certified
Cleanroom Option Down to Class 1000Min Vacuum Standard: 10 Torr Option: < 10 Torr
Max Board Size L500 x W450 x H29（cm）Heated Length (Convection/Total) 174cm / 273cm
Process Gas Options Air, Nitrogen, Formic Acid, forming gasCool Zones 2 Top (Bottom Option) 3 Top (Bottom Option)

Features：

1、Heller Industries provides optimized cycle (average 30s~60s) to achieve super high UPH.

2、Heller vacuum assisted reflow applies multi-zones to meet various thermal profile requirements.

3、Heller Industries utilizes advanced pumping package with high capacity for fast pump down time.

4、Reflow time under vacuum of 15 seconds was able to achieve ＜1% total void area spec.

5、Heller adopts high efficient flux collection system to collect the flux and keep tunnel clean.

6、On-the-fly maintenance is available.

7、Chamber exhaust fore line, ball valve, butterfly valve and dry vacuum pump are heated to 150℃ to eliminate flux condensation.

Specification：

Model	1808MK5-VR	1911MK5-VR	1912MK5-VR	1936MK5-VR	2043MK5-VR
Oven Length	465cm	590cm	590cm	589cm	680cm
Process Gas Options	Air, Nitrogen, Formic Acid, forming gas	Air, Nitrogen, Formic Acid, forming gas	Air, Nitrogen, Formic Acid, forming gas	Air, Nitrogen, Formic Acid, forming gas	Air, Nitrogen, Formic Acid, forming gas
Heated Zones	Convection: 7 Top / 7 Bottom IR: 3 Top	Convection: 10Top / 10 Bottom IR: 3 Top	Convection: 11 Top / 11 Bottom IR: 3 Top	Convection: 8Top / 8 Bottom IR: 3 Top	Convection: 10Top / 10 Bottom IR: 3 Top
Heated Length (Convection/Total)	174cm / 273cm	262cm / 364cm	290cm / 382cm	290cm / 382cm	327cm / 430cm
Cool Zones	2 Top (Bottom Option)	3 Top (Bottom Option)	3 Top (Bottom Option)	3 Top (Bottom Option)	3 Top (Bottom Option)
Max Working Temperature (Convection / IR)	Standard: 350°C / 400°C, Option: 400°C / 480°C	Standard: 350°C / 400°C, Option: 400°C / 480°C	Standard: 350°C / 400°C, Option: 400°C / 480°C	Standard: 350°C / 400°C, Option: 400°C / 480°C	Standard: 350°C / 400°C, Option: 400°C / 480°C
Min Vacuum	Standard: 10 Torr Option: < 10 Torr	Standard: 10 Torr Option: < 10 Torr	Standard: 10 Torr Option: < 10 Torr	Standard: 10 Torr Option: < 10 Torr	Standard: 10 Torr Option: < 10 Torr
Max Board Size	L500 x W450 x H29（cm）	L500 x W450 x H29（cm）	L350 x W350 x H29（cm）	L350 x W350 x H29（cm）	L500 x W450 x H29（cm）
Cleanroom Option	Down to Class 1000	Down to Class 1000	Cleanroom Option	Down to Class 1000	Cleanroom Option
