Vacuum Cleaning Machine, Automation Grade : Semi Automatic, Manual

we are offering airjet bottle vacuum cleaning machine
description:-

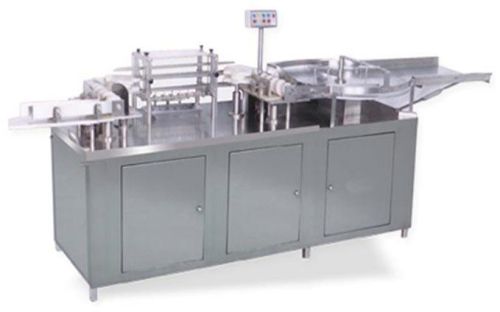

automatic airjet & vacuum cleaning machine comprises a stainless steel frame mounted on adjustable feet. the containers are manually loaded on the turn table. the loaded containers are fed in upright position via turn table are inverted in mouth down position and linearly feed through a chamber which is under a negative pressure, a series of nozzles blow air in the container to clean their containers, are re-erected with mouth up at the outfeed end. this automatic airjet & vacuum cleaning machine is ideal machine for the cleaning of plastic, hdpe & pet bottles uses in pharmaceutical industry.
salient features:-
* machine provides 8 air washes.
* all contact parts made out from ss 304.
* entire frame covers & non contact parts made out from ss 304.
* over load clutch is provided to prevent jamming on machine.
* quick change over with minimum use of tools.
* used in product like dry syrup, tablet, capsule etc.
process operation:-
this machine works on a principle of back pressure of bottle which will be fed by the unscrambler to reach separator assembly, which transfer the bottle on conveyor belt and pushes bottle to the cleaning section one after another. machine consists of two inverters and one cleaning section. bottle will be pushed by rotating separator towards the infeed inverter, which makes the bottle in the wrong direction and push it to cleaning section through back pressure of other bottle.
