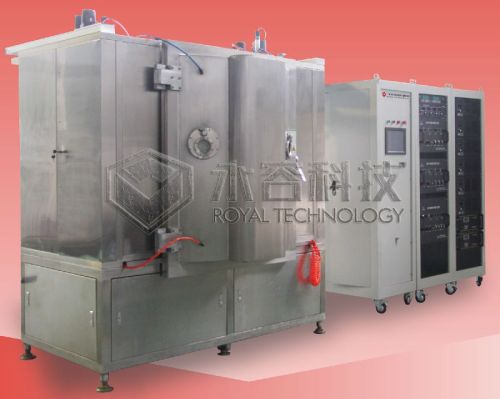

Electric Vacuum Coating Machine, Vacuum Coating Equipment

₹ 89 Lakh / Set

MOQ1 Set(s)
Driven TypeElectric, Hydraulic, Penaumatic
CertificationCE Certified
Brand NameROYAL
ConditionNew
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 7 Years
Nature of Business Supplier
Year of Establishment 2006

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerPVD Vacuum Coating
CertificationCE Certified
Country of Origin380V, 440V
ConditionNew
Driven TypeElectric, Hydraulic, Penaumatic
Total Carbohydrate1year
Power120KW
Brand NameROYAL
After-Sales Service ProvidedYES
UsageMetal, Steel, Plastic Parts, Zinc Alloy And Brass Products For Decorative Or Functional Films Coatin
Automatic GradeAutomatic, Fully Automatic, Manual, Semi Automatic
Weight9000kg
Vacuum Coating TechnologyPVD, Balanced/Unbalanced Magentron Sputtering Cathode
Vacuum Coating FeaturesWear Resistance, Strong Adhesion, Decorative Coating Colors
Vacuum Deposition SourcesSteered Cathodic Arc + MF Sputtering Cathode

Graphite PVD Vacuum Coating Machine Structures:
Deposition Sources
Steered Circular Arc sources for evaporation of solid metal target;
2 pairs of MF unblanced sputtering cathodes for graphite thin film layer deposition;
Bias Power Supply for ion bomboardment to form the plasma area for pre-treatment;
Anode Linear Ion Source Unit ( for optional) PACVD and PECVD processing;
Cryopump ( Polycold) for water molecular condensation ( for optional)

Other Modules
1. Vacuum Chamber
2. Rouhging Vacuum Pumping System (Backing Pump Package)
3. High Vacuum Pumping System ( Magnetically Suspension Molecular Pump)
4. Electrical Control and Operation System
5. Auxiliarry Facility System (Sub System)
6. Deposition System: MF sputtering cathode, MF power supply, Bias Power Supply Ion source for optional

Graphite PVD Vacuum Coating Machine Performance
1. Ultimate Vacuum Pressure: better than 5.0×10^-⁶ Torr.
2. Operating Vacuum Pressure: 1.0×10^-⁴ Torr.
3. Pumpingdown Time: from 1 atm to 1.0×10^-⁴ Torr≤ 3 minutes ( room temperature, dry, clean and empty chamber)
4. Metalizing material (sputtering + Arc evaporation): Ni, Cu, Ag, Au, Ti, Zr, Cr, TiN, TiC, TiAlN, CrN, CrC, etc.
5. Operating Model: Full Automatically /Semi-Auto/ Manually

Additional Information

Payment Terms L/CT/T
Port of DispatchShanghai, China
Packaging DetailsExport standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation.
Delivery Time12 weeks
