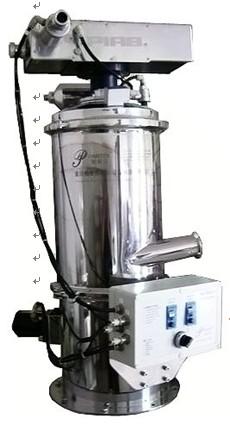

Vacuum Conveying Equipment, Brand Name : Partek

We are offering vacuum conveying equipment.
Introduction
when inhaling the compressed air, vacuum conveying equipment can transport powder, motes, pigments, particles, pills, capsules, crops, components, etc by flexible plastic tubes. It is featured by convenient installation and operation and there is no leak or dust explosion during the transportation process.
features
non-power drive: the whole system is controlled and run by compressing air;
automatic control makes it simple and convenient to operate;
in line with the gmp standard and meet the cip requirement
small size and light weight, easy and quick installation.
No vibration, low noise.
Non-dust operation: it will cause no pollution to the surrounding environment while transmission
one device can be used for more than one machine, and the maintenance cost is low.
No heat produced during its work.
High security.
applications
pharmaceuticals (raw medicine, powder material, granular material, mixed material, tablets, coated pills, etc)
foodstuff (additive, raw material, candy, coated sugar pellet, cocoa powder, monosodium glutamate, crystalline solid, etc)
chemical industry (dye, pigment, etc)
agriculture (bulk material, etc)
electronic industry (small-sized fittings, etc)
v180型 v250型 v320型 v430型
真空泵型号(vacuum pump model) mvl100 mvl200 mvl400 mvl800
压缩空气压力
（compressed air） 压力（pressure） 0.5～0.8 mpa 0.5～0.8 mpa 0.5～0.8 mpa 0.5～0.8 mpa
耗量（consumption） 0.4m3min 0.8m3min 1.8m3min 3.6m3min
输送能力(delivery capacity) 0.1-0.3th 0.1~0.5 th 0.5~1.2 th 0.9~2.8 th
过滤器
（filter machine ） ti07进口滤芯、ptfe滤芯、pe-hd滤芯、ti烧结式滤芯
（filter machine ti07、ptfe filter machine、pe-hd filter machine、titanium filter machine）
过滤器有效面积(filter active area) 0.3m2 0.3m2 0.9m2 1.8m2
吸料口直径(suction mouth diameter) dn25 dn50 dn75-50 dn100-75或dn100
下料口直径(blanking mouth diameter) φ60 mm φ120 mm φ150 mm φ200 mm
料仓有效容积(storage bin effective volum) 3l 9 l 12 l 22 l.
