Vacuum Emulsifying Mixer

We are offering vacuum emulsifying mixer
the important problem is scattered bigger diameter particle and have air into the material when mix the heavy body emulsifications, especially in the producing cream, ointment, emulsion series. The bigger diameter particle cause the material labialization and lack luster. If the air into the material cause the material have air bubble, bacterium pollution, apt oxidize and made the material not smoothly. Regarding to the two problems, our factory had developed zjr vacuum emulsifying mixer series that the main systems are homogenizer & middle (fixed) stirrer & scrapers residues stirrer, so make up into the best mixing way and pump to reach and mix the material perfectly. Adopt the vacuum pump to draw out air from material , ensure produce the material is rich gloss, fine and smooth and prolongs quality product with good malleability.
formation

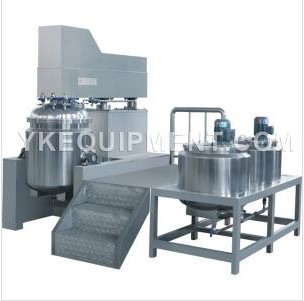

zjr vacuum emulsifying mixer series is composed of emulsifying pot (fluctuating cover, overturn vessel form or outside circle form), water pot ,oil pot, vacuum system, heating and temperature control systems, cooling systems, electric machinery control systems. Etc.
work elements
after the material are in the water pot and oil pot to heating & mixing then draw into the emulsifying pot by the vacuum pump. Through the middle stirrer & teflon scrapers residues on the wall of the vessel, so make the produces of wiped off become the new interface constantly, then the blade cut off, compress, fold round, mixing and running to the homogenizer, according to the high shear wheel and the cutting case to strong cutting off, impact, without rules mobility, etc. The material by cutting in the cut interstices and turn to a particle of 200nm-2um prompt, because the emulsifying pot is under vacuum state, the bubble that the supplies produce in the course of mixing is taken away in time.
features:
the pot cover is automatic rising type. The material was directed draw into the emulsifying pot from oil pot and water pot because on a pipe that is under vacuum. The discharge is based on the turn the emulsifying pot. And the heating system is electric heating or steam heating that the temperature is automation control. Put the cool water into the jacket so cooling the material. Simple operation and safety (at the outside have a keep warm layer). The homogenizer and the blade stirring can work together or work separately. The material will be sliming, emulsifying, mixing, dispersing etc in a short time. The parts contact the product adopt high-quality stainless steel (medical usage adopt ss 316l , the interior surface is mirror polished, vacuum mixing device is hygiene. It’s produced according to normal hygiene of gmp standard. It is the most ideal production equipment for cream & lotion.)
