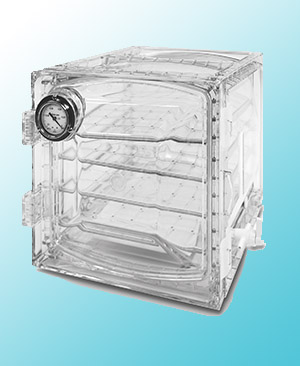

VACUUM GUAGE CUBIC DESICCATOR

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

These cubical vacuum desiccator are integrally molded ensuring superb vacuum capability with almost no leakage and excellent durability. Maximum vacuum of 1 Torr (1.33 x 10-4 Mpa) for 72 hours. High....

View More Details

Send Enquiry

Company Information

ABDOS Labtech Private Limited

Asola, Delhi

View Number

Member Since 10 Years
Nature of Business Manufacturer
Year of Establishment 2009

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

These cubical vacuum desiccator are integrally molded ensuring superb vacuum capability with almost no leakage and excellent durability.
Maximum vacuum of 1 Torr (1.33 x 10-4 Mpa) for 72 hours.
High quality silicone gasket ensures greaseless airtight seal for cost effective and clean test environment.
Highly transparent, shatterproof, non-corrosive, and easy to clean polycarbonate construction.
Three-way stopcock ensures consistent and uniform vacuum raw, vacuum release, or gas exchange. The barbed fitting on each side secures attachment of tubing.
Maximum utilization of internal space using four to six shelves depending on product sizes.
Stackable space saving design allows efficient use of cramped lab space.
Four in built ports allowing easy attachment of tubing.
UV-blocking models minimizes damages and discoloration of light-sensitive samples.
Vacuum gauge is attached at the front door for easy vacuum level checking.

Specifiaction	E11613 & E11613 A	E11614 & E11614 A	E11615 & E11615 A	E11616 & E11616 A
Internal Volume	11 L / 0.4 cu ft	23 L / 0.8 cu ft	35 L / 1.2 cu ft	45 L / 1.6 cu ft
Guage Range	0 to -0.1 Mpa	0 to -0.1 Mpa	0 to -0.1 Mpa	0 to -0.1 Mpa
Nozzle	9.5 mm / 0.37 inch (Diameter)	9.5 mm / 0.37 inch (Diameter)	9.5 mm / 0.37 inch (Diameter)	9.5 mm / 0.37 inch (Diameter)
Max. Permissible Vacuum	1.33 x 10-4 Mpa	1.33 x 10-4 Mpa	1.33 x 10-4 Mpa	1.33 x 10-4 Mpa
Max Load per shelf	3 Kg	5 Kg	5 Kg	5 Kg
Number of Shelves	2 standard / 4 maximum	2 standard / 4 maximum	3 standard / 5 maximum	3 standard / 6 maximum
Material - Body	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate
Material - Perforated Sample Tray	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate
Material - Drying Agent Tray / Locker	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate
Material - Vacuum Seal	Silicone Rubber	Silicone Rubber	Silicone Rubber	Silicone Rubber
Dimension - Interior	248 x 254 x 238 mm (W x D x H)	346 x 365 x 246 mm (W x D x H)	355 x 375 x 345 mm (W x D x H)	355 x 374 x 445 mm (W x D x H)
Dimension - Exterior	322 x 285 x 271 mm (W x D x H)	420 x 397 x 281 mm (W x D x H)	420 x 397 x 381 mm (W x D x H)	420 x 397 x 491 mm (W x D x H)
Net Weight	4.2 Kg	8.2 Kg	10.8 Kg	12.2 Kg
E11613 A , E11614 A, E11615 A, E11616 A Codes are translucent (amber colour) vacuum desiccators with untraviolet block effect. All models comes with vacuum guage.

Code	Capacity (Lts)	W x D x H (mm)	Colour	No. per case
E11613	11	322 x 285 x 271	Natural	1
E11613 A	11	323 x 285 x 271	Amber	1
E11614	23	420 x 397 x 281	Natural	1
E11614 A	23	421 x 397 x 281	Amber	1
E11615	35	420 x 397 x 281	Natural	1
E11615 A	35	421 x 397 x 281	Amber	1
E11616	45	420 x 397 x 281	Natural	1
E11616 A	45	421 x 397 x 281	Amber	1
