Vacuum Package Integrity Testing Equipment

We are offering vacuum package integrity testing equipment is designed for the examination of airproof property of packages, containers, bags, pipes. Vacuum package integrity testing equipment is widely used in food, beverage, pharmaceutical, daily chemical, electrical and electronic industries, etc. Vacuum package integrity testing equipment lt-02 complies with astm d3078 and gbt 15171 standards.

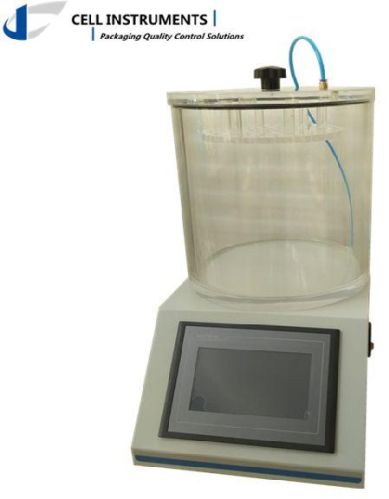

vacuum package integrity testing equipment is composed of the mainframe and the vacuum chamber. a test sample is placed into a vacuum chamber with water and the air above water level is evacuated by a venturi vacuum ejector. A great pressure difference is created inside and outside the sample and any slight leakage can be observed and identified when the sample is inflated.
vacuum package integrity testing equipment uses vacuum ejector to generate stable vacuum environment.
1. leak test process all automatic
2. digital vacuum degree and test time setting
3. automatic vacuum maintenance and air back-flushing
4. extra-thick perspex
5. different chamber sizes available
6. no vacuum pump required
7. easy operation and maintenance leak detection system
vacuum package integrity testing equipment technical specification
vacuum: 0~-90kpa0~-13psi
vacuum chamber size: φ270 mm x 210 mm (h) ( customization available)
gas source: compressed air
gas pressure: 0.7mpa101.5psi
