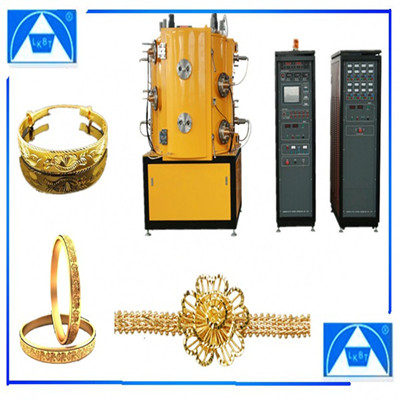

Vacuum Plating Machine

We are offering vacuum plating machine.
commodity name: magnetic control target coating machine
1.feature: equipped the advanced big power magnetron power supply, constant current, can improve the film adhesion, density, degree of homogeneity etc.
2. Performance: this series equipment is mainly use
direct current magnetic sputtering, can apply widely coating target, such as: copper, titanium, chromium, stainless steel, nickel, this metal material. Use sputtering technology coat film.
3.applied range: apply to plastic products, ceramic, resin, crystal glass etc. Artware, plastic mobilephone hell, electrical products, building materials etc industries.
parameter model quantity
vacuum chamber structure vertical front door, double-deck or cooling groove
vacuum chamber size（mm） 1000×1200 1
pumping rate １×105pa~3×10-3pa≤15min
maximum vacuum ≤8×10-4pa
system mating maintain pump 2x-15 1
machinery pump 2x-70 1
diffusion pump kt-600 1
roots pump zjp-300 1
workpiece system workpiece system: planet revolution and rotation type(spindle quantity is eight, can customize
) 8
heating method edge install stainless steel heating tube 4
ion bombardment 20kw contravariant bias pls-20kw 1
magnetron target quantity plane target 2
magnetic power supply 20kw magnetic power supply ms-20kw 2
working method plc semi automatic control or pc+plc whole automatic control method
