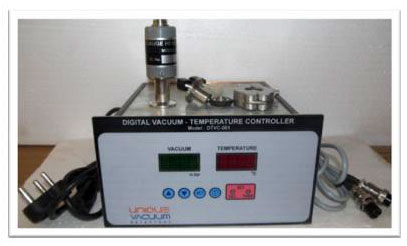

Vacuum Temperature Controller

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Vacuum Temperature Controller is used for controlling heat in laboratory. A Vacuum Temperature Controller constantly adapts to the pump’s volume flow rate to process the requirement. The maximum flow volume here is maintained through Vacuum Temperature Controller. We supply high quality Vacuum Temperature Controller that is tested on stringent quality parameters before dispatch.

View More Details

Send Enquiry

Product Details

Specifications

Model	DVTC-001
Number of sensor channels	ONE EACH FOR VACUUM AND TEMPERATURE
Display Range	FULL range: 0.001 to 1000 mbar for vacuum & -100 to +800 Deg C for temp.
Measuring Range	USEFUL range: 0.001mbar to 100 mbar and -100 to +80 0 Deg C for temp.
Units of Display	m Bar and Deg C
Vacuum Gauge	Pirani (S-PR-GH sensor tube) and RTD thermo couple
Temp. Range	+2 to +50 deg. Celsius
Display	4-digit bright red LED, 14 mm high
Display Indicators	red LED for SET PT
VAC and ATM Adjust	Adjusted by trim pot at the signal conditioner PCB.
Process control set points	ONE EACH FOR VAC & TEMP
Process Control Relays	Two relays, 2 amp, 240 VAC contacts; independent available through the DB15 accessory connector
Nonvolatile Memory	for SET POINTS
Operating Voltage	universal power supply, which operates on input voltages from 90 ~ 264VAC 50/60 Hz; standard IEC 320 instrument power input recepta cle on rear panel; replacement fuse type: 5 mm X 20 mm, 2 amp
Mounting	Side clips are provided for panel mounting
Environmental Considerations	not for use with explosive or corrosive gases
Overall dimensions	200W X 210D X110 H (mm)
Cut out dimensions	180W X 90H (mm)
