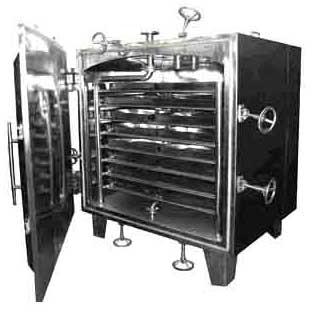

Vacuum Tray Dryer

We are engaged in manufacturing high grade Vacuum Tray Dryer in various shapes and sizes. Our Vacuum Tray Dryer is aptly designed for drying thermal sensitive materials which can be easily resolved, degrade, or polymerized under high temperature. Sterilization of the material can be conducted before drying process as no other materials are allowed to enter once the dryer is started. Besides, it also assists in elimination of configurationally damage of drying materials.

• Receiver and Condenser in SS 316
• SS 304 steam radiator/electrical heaters
• Validation port is available with Censors
• Skirting or wall panel that is provided with all along the body as well as vacuum chamber flange
• Hot water system (steam heated) with MS tank (Insulated)
• Insulation is provided with vacuum chamber outer surface excluding door. The insulation is enclosed and is covered with transferable SS 304 panels
• Circulation pump with FLP Motors and controls
• Vacuum Pump (2stage water ring) consisting FLP motor

• Main Body made of thick SS 316 plate
• Door thick SS 316 plate consisting heavy duty SS 316 flange
• Heavy duty SS 316 flange and stiffeners available
• Trays (without back folding) in SS 316 having round corners and edges
• Condenser and Receiver SS 304
• Hollow type pads shelves with SS 316 Sheet as well as Baffles
• Digital Temperature controller (FLP) with
• Explosion Vent or rupture disc on vacuum chamber
• Validation Port on Body (provisional)
• Solenoid controlled Pneumatic operated valve located at hot water inlet
• Digital type Vacuum gauge in vapor line
• Digital Temperature Indicator at H.W. inlet & outlet
• Pressure release valve in steam line
• Digital Temperature Indicator (FLP) in vapor line
• Silicon Transparent gasket perfectly designed for door
• Light glass provided on vacuum chamber body, door and receiver
• Drain valve for Vacuum chamber as well as Receiver
• Nitrogen purging valve and Vacuum break valve available on vacuum chamber
• Finish : Internal 320 grit Mirror Polish /outer 180 grit mat finish
• Temperature Accuracy : plus-minus 2 to 3 degree
