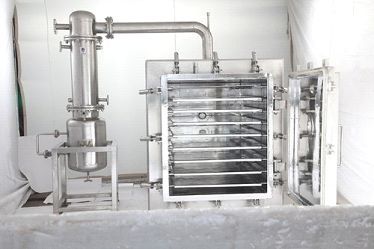

SS 316 Automatic Electric Vacuum Tray Dryer For Industrial

Name: Vacuum Tray Dryer
Price: 160000 INR
Availability: InStock

₹ 1.60 Lakh - ₹ 45 Lakh / Piece

Company Information

4.0/5

(1)

Ask for more detail from the seller

Report incorrect details

Main Body/Vacuum tray dryer chamber thick SS 316 plate with heavy duty SS 316 flange and stiffeners.
Door thick SS 316 plate (Hemisphere shape) with heavy duty SS 316 flange.
Shelves hollow type pads with SS 316 sheet and baffles.
Condenser (shell & tube) & receiver SS 304 with isolation valve and flow glass in between to monitor condensation.
Vacuum Tray Dryer machine in SS 316 rounded corners and edges.
Explosion vent/ rupture disc on vacuum chamber.
Pressure release valve in steam line.
View and light glass provided on vacuum chamber door.
Silicon transparent gasket for door.
Nitrogen purging valve provided on vacuum chamber.
Vacuum tray dryer break valve provided on vacuum chamber.

Finishing :

MODEL IN SIZE	VTD 6	VTD 12	VTD 24	VTD 48	VTD 96
NO OF TRAYS	6	12	24	48	96
CAPACITY IN KGS	45278	12816	50 - 75	75 - 100	100 - 150
TRAY VOLUME IN LTRS / KG	5 TO 25	6 TO 14	6 TO 14	8 TO 16	10 TO 12
TRAY SIZE	812 LENGTH x 406 WIDTH x 32 HEIGHT mm
NO OF HEATING SHELF’S	7	7	9	13	17
