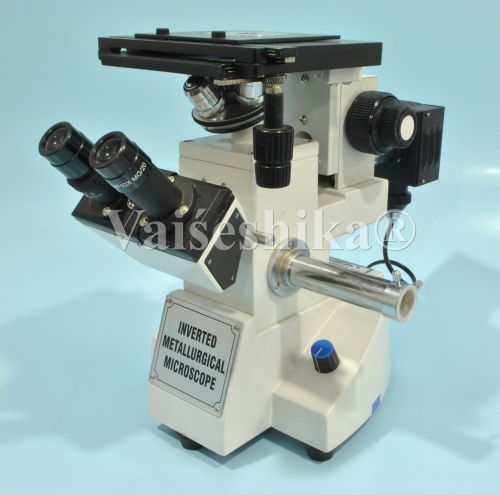

Vaiseshika Inverted Metallurgical Microscopes

We are offering vaiseshika inverted metallurgical microscopes. Description
"vaiseshika” has introduced metallurgical microscope with inverted design so often favoured by metallurgists, and industrial users. It saves time and is so convenient for large size metallographic specimen examinations. Prepared specimens and even large objects placed on the inverted stage are levelled automatically to the optical axis, ready to examine.
Microscope is having motion assembled on ball bearing guides, having compact design, clear glare free image, low drive stage.
Specification
magnification : 50x to 400x with standard eyepieces & objectives
: 25x to 1200x with optional eyepieces & objectives
focusing : coarse and fine
head : monocular, binocular trinocular (optional)
illumination : halogen, incident light. Facility to control intensity of light and field aperture
eye-pieces : wf 10 x
objectives 7001 c : achromatic objectives 05x, 10x, 20x & 40x (parafocal high quality optics)
focusing : coaxial coarse & fine focusing system
mechanical stage : two layer & three - axis movable stage with coaxial x-y movement. Coaxial double knob for coarse & fine movement.
Specimen size : large, no limitation but light weight.
accessories
polishing machine type: 7001 pm pdf literature
specimen cutting machine type: 7001 cm pdf literature
belt grinder type: 7001 bg pdf literature
specimen mounting press type: 7001 smp pdf literature
for our complete product range please visit our website www.vaiseshika.com
