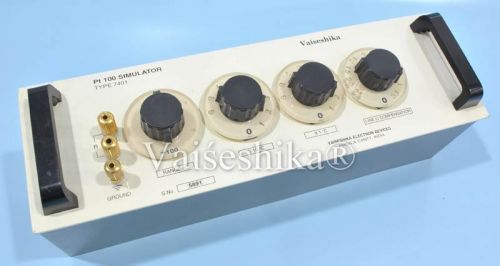

Vaiseshika Pt-100 Simulator

We are offering Vaiseshika Pt-100 Simulator.
Description
Manganin wirewound resistors are used to produce the values corresponding to a PT 100 element in the temperature range -99°C to ±199°C. Winding material is Manganin. The resistors are individually adjusted, carefully aged and checked several times during the production.
Wafer type switches with silverplated double contacts are used to ensure high reliability
Features
Resistance up to 25 ohm
Simulating wiring
Accuracy 0.1Deg. C
Resolution 1Deg. C
Simulating -99 Deg. C to +199 Deg. C
Direct readout in Celsius
Two terminals together with a separate earth terminal are provided
Terminal spacing 19mm
Specification
Resolution : 1 Deg. C
Range : 99 Deg. C to +199 Deg. C
Accuracy : 0.1 Deg. C
APPLICATION SPECTRUM
Control of heating and cooling systems
Servicing and fault hunting of temperature controlling systems
Quality control of temperature regulating devices
Used in the laboratories and workshops to simulate the resistance values of Pt100 elements
RESISTANCE CALIBRATION STANDARD
Process control instruments
Temperature indicators
Thermocouples and RTDs
Platinum resistance thermometers
Digital and analog meters
Resistor manufacturing industries
CURRENT SHUNT
HIGH STABILITY DECADE MEGOHM BOX
Insulation tester calibrations
Megger calibrations
Meters calibrations
RESITANCE SUBSTITUTION AND SIMULATION
In quality control laboratories
In engineering colleges
In experimental laboratories
