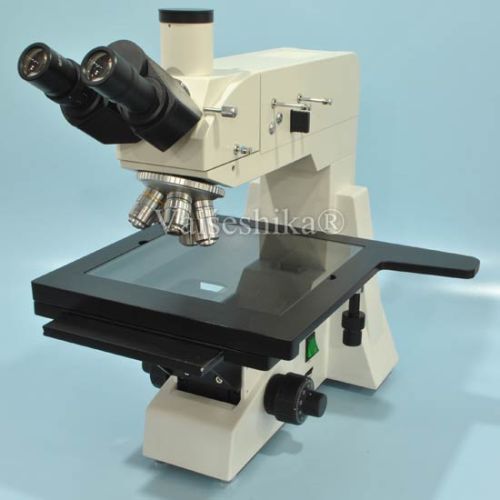

Vaiseshika Ultra Advance Upright Metallurgical Microscopes

we are offering vaiseshika ultra advance upright metallurgical microscopes. description
ums-300 reflected metallurgical microscopes are suitable to observe the microscopically surfaces of non-transparent objects. they are equipped with large moving ramgre mechanical stages, reflected vertical illumination and set polarizer device in trinocular. they have clear and high contrast picture sculpt, conventional control etc.
they are suitable for scientific research, teaching, demonstration in the colleges and factories
features
with long working distance, plan achrobatic objectives (no cover glass) and wide field eye-piece, can get clear pictures and wide view field
with large move range mechanical stage, can move quickly and slowly
coaxial coarse fine focus system with tensional adjustable and up stop, minimum division of fine focusing of 0.7 micro meters
6v 20w halogen bulb adjustable brightness
trinocular can switch to observe normally or to observe polarize. can send 100% of light to the binocular eye-piece or to the top port
specification
eye-piece : wide filed wf 10x
objective : long working distance plan achromatic objective 5x, 10x, 20x, 40x and 80x
eyepiece tube : tinocular, inclination of 30deg
vertical illumination unit : 6v, 20w, halogen lamp, adjustable brightness
focus system : stage adjustable, coaxial coarse fine focus system with tension adjustable and up stop, minimum division of fine focus of 0.7 micro meter
nose piece : quadruple (frontward ball bearing inner locating)
stage : three layer mechanical, size: 280mm x 270 mm, moving range 8"x8"
micro photographic images captured on metallurgical microscope
micro structure of polishing powder of 1100 micron micro structure of welding joint
