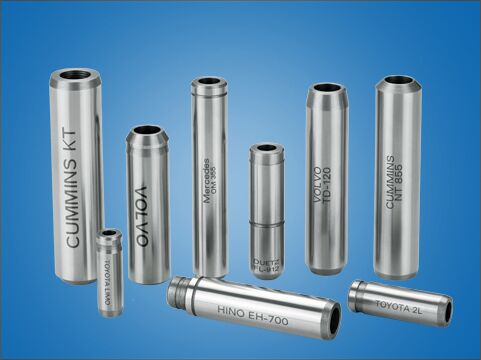

Valve Guides

Listing ID #1776059

  • Supply Type Supplier
Preferred Buyer From : All over the world

The valve guide has the task to absorb the transverse forces which affect the valve stem. The valve guide centers the valve on the valve seat insert and conducts a proportion of the heat from the....
View More Details
Send Enquiry

Company Information

  • Member Since 14 Years
  • Nature of Business Retailer
  • Year of Establishment 2005

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • The valve guide has the task to absorb the transverse forces which affect the valve stem.
  • The valve guide centers the valve on the valve seat insert and conducts a proportion of the heat from the valve head, via the valve stem to the cylinder head.
  • Due to this extreme strain, for the valve guides mainly the material and its properties are a decisive factor for the product quality.
Production Capacity

30000 pieces per month

*Believe in Quality not Quantity



Materials

Valve guides are made of materials with good gliding and thermal conductivity properties. Grey cast iron and brass materials with selected alloy components have been particularly proven.






Standard Values for the Clearance between Valve Guide & Valve Steam
Stem Diameter Clearance: Intake Value Clearance: Exhaust Value
6 to 7 mm 10 - 40 μm 25 - 55 μm
8 to 9 mm 20 - 50 μm 35 - 65 μm
10 to 12 mm 40 - 70 μm 55 - 85 μm

CHEMICAL COMPOSITION
GRAY CAST IRON (GRADE: GG-25)
Material C Si Mn Cr Cu Sn S P Fe HARDNESS
Per (%) 3.0 to 3.90% 2.0 to 2.90 % 0.60 to 0.70 % 0.30 %Max Max 0.50% 0.10% 0.15%Max 0.40 to 0.70 % Balance 190-240BHN
BRASS VALVE GUIDES
Materials Cu Pb(Led) Sn(Tin) Fe(Iron) Cu Al Ni Mn Total impurities
Per (%) 56.0 to 58.0% 2.0 to 3.4% TR 0.35 %Max Max 0.50% TR TR TR 0.70 %

Dimension Range (in mm)
Inner Dia. 5.00 TO 28.00 MM
Outer Dia. 8.00 TO 30.00 MM
Total Length 25.00 TO 300.00 MM
