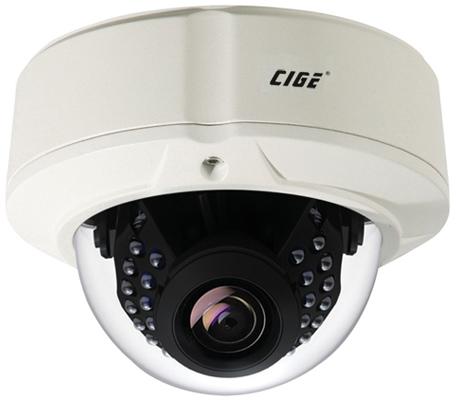

Contact SupplierWe are offering vandal-proof ir dome camera.
Features:
vandal-proof ir dome camera
1/3sony high sensitivity ccd
high resolution: color 480tvl, b/w 500tvl
2.8-12mm varifocal mega pixel lens;
35pcs 5mm ir led; max: 35m
min. Illumination: 0.002lux(b/w)
osd menu(english/chinese);
2d-dnr; awb, agc, blc;
casing: white
model dis-809vp/l
image sensor 1/3sony high sensitivity ccd
effective pixels pal: 976 (h)ã? 494(v) ntsc: 976 (h) ã? 582 (v)
signal system pal/ntsc
horizontal resolution color 480tvl, b/w 500tvl
min. Illumination 0.001lux f1.2
s/n ratio more than 52db
shutter speed 1/50(1/60)-1/10, 000(s)
gain control auto
white balance auto
b/l compensation auto
sync. System internal
auto iris lens 2.8-12 mm mega pixel lens
video output 1.0vp-p75ï?
ir lamps wavelength 850nm
power requirement dc 12v 150ma (ir on 330ma)
power consumption: day approx. 1.8w night/approx. 3.96w
dimensions(wxdxh): 137mm x 115mm
weight approx. 800g
