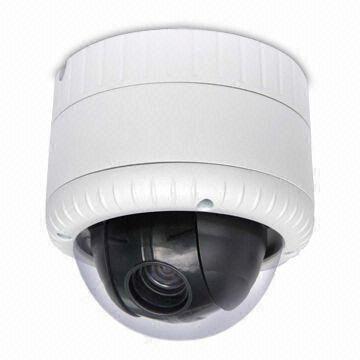

Vandalproof High Speed Dome Camera, Packaging Type : white

Key Specifications/Special Features:
Zoom: 10x optical, digital
Color resolution: 500TVL
Black/white resolution: 570TVL
Sensor: Sony CCD
Transform between color and black/white, auto-change ICR
128 preset positions, 0.1 accuracy, maximum speed 200°/second
Horizontal continuous 360° panning, tilting 90° flip
Supports 4-line alarm input, 2-line output (excluding this set in the default mode)
English OSD menu, 4-line pattern, 2-scan mode
Auto scan and limited the position in the left/right, the speed can be adjusted
Communication: RS-485, Pelco-P/D protocol auto detected
Baud optional 2,400/4,800/9,600/19,200, 255 ADD ID
8-line scanning limited in the left/right
Power supply: 12V DC
Technology parameters:
Signal format: PAL/NTSC
Image sensor: 1/4 HAD CCD
Resolution: 520TVL pixels
Lens: total zoom 100x
10x zoom, 10x electronic zoom
Illumination: color 0.7 lux/F1.8 (50IRE), B/W 0.1 lux/F1.8 (50IRE) (minimum)
S/N: ≥50dB
White balance: automatic/manual
Expose: automatic/manual/priority/backlight compensation
Focus: automatic/manual (preferential)
Backlight compensation: off/slow/middle/high
Privacy zone: on/off, 4 dynamic tracking privacy zones
Operation button: far/near zoom
Video output: (VBS) 1.0Vp-p (synchronization, negative) Y/C
OSD: English
Image auto-flip: on/off
Alarm: 4 (input)/2 (output)
Protocol: Pelco-D/-P
Black/white mode: automatic/color/BW
Patrol learns: record up to 63 movements
Panning speed: manual: 0.1°, 240°/second 8 steps/64 steps
Sequential position maximum: 300°/second (approximately)
Panning range: 0 to 90°
Panning: 0 to 360°
Power consumption: 6W
Operating temperatures: -40 to 70°C
