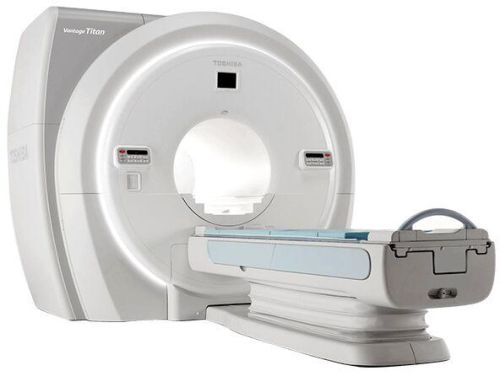

VANTAGE TITAN 1.5T MRI Scanner

The Toshiba Vantage Titan 1.5T MRI machine is a open-bore imaging system with an extended field of view and high homogeneity. Featuring a 71cm aperture with a 55 x 55 x 50 cm FOV, the Toshiba Vantage Titan 1.5T MRI allows for fast, productive scanning of any part of the body with minimal patient discomfort.

The Vantage Titan is a large open bore MRI system that improves patient care with its reduced noise, extended FOV and increased homogeneity. This system has an open bore that is 18% larger than other 1.5T systems with a 71cm aperture. This MRI system offers one of the largest and widest open bores available. It is also one of the most powerful MR systems that is available with a 30/130 gradient platform. This MRI system has a field-of-view size 55 x 55 x 50 cm that is very unique in size which produces high-quality images without compromising homogeneity or overall imaging performance.

The Vantage Titan 1.5T MRI system by Toshiba has been designed with features to improve the patients comfort and increase the range of patients who are able to undergo MR exams. This system has been equipped with the Pianissimo technology to dramatically reduce acoustic noise that is a significant cause of discomfort during exams. Patients who are sensitive to contrast agents now have the option available to have a contrast free.

Toshiba Innovations for the Toshiba Vantage Titan 1.5T:

Reliable examinations in a shorter time In M-Power V3.1, SpineLine for spinal examinations is added to the EasyTech lineup designed to assist in scan slice setting by analyzing the shape of the target anatomy. SpineLine provides a comfortable workflow by reducing the time required for slice setting in spinal examinations.

Comfortable examination environment with increased flexibility In M-Power V3.1, the flexibility of sequence editing has been increased to make full use of the system capabilities. Flexible parameter setting enables comfortable examinations while maintaining high image quality.

Safe and reliable examinations with enhanced security The security of medical equipment is now an extremely important issue. Conventional security software programs require regular updating of data in order to provide protection against unknown viruses. M-Power V3.1 employs Windows® 7 and whitelist-based security software that permits only software programs registered in the whitelist to be executed.

Environmental considerations M-Power V3.1 provides an energy saving ECO mode that is automatically applied by simply lowering the patient table. Stability of operation is maintained when entering or exiting this mode. In addition, zero helium boil-off has been accomplished. This eliminates the necessity of periodic helium refilling and as a result increases the system uptime, enhances environmental performance, and reduces helium costs.

The Toshiba Vantage Titan 1.5T provides you with with the following Specification:

Unique Field-Of-View of 55 x 55 x 50cm
Homogeneity specification of two parts per million
Designed to capture higher resolution images
Provides comfort for obese and claustrophobic patients
18% larger open bore
