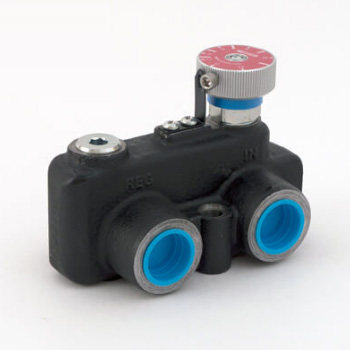

Variable Flow Dividers

Aimed at mobile and industrial applications the VFD190 can be used for controlling hydraulic motor and cylinder speeds by manually adjusting the flow rate.

• Working Pressure (Max): Up to 420 bar (6000 psi)
• Total flow capacity: 50 USgpm (190 lpm)
• Material: Steel components in cast SG iron body painted black; aluminium knob
• Weight: 7.7 to 8.8lbs (3.5 to 4.0Kg)
• Mounting: Two bolt - M8 or 5/16”
• Clearly marked single-turn hand dial permits fast visual adjustments to pre-determined ‘Priority’

Pressure compensated permitting both ‘Priority’ and ‘By-Pass’ to be used simultaneously at varying pressures without affecting the ‘Priority’ flow rate.

The VFD120 design has also been optimised to reduce energy wastage by minimising the pressure losses across the valve, resulting in a significant reduction in running costs
