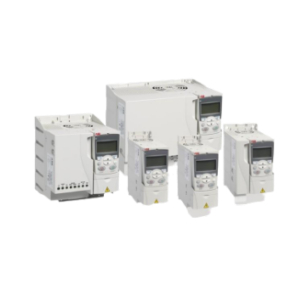

ABB Acs 355 Drives

₹ 5,000 - ₹ 10,000 / unit

Brand NameABB
Input Voltage1Ph,200 to 240V +- 10%(.37 to 2.2Kw)3Ph,200 to 240V +- 10%(.37 to 11Kw)
PhaseTripple Phase
Number Of FlowerVariable Frequency Drives
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

Member Since 16 Years
Nature of Business Retailer
Year of Establishment 1969

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerVariable Frequency Drives
PhaseTripple Phase
Brand NameABB
Input Voltage1Ph,200 to 240V +- 10%(.37 to 2.2Kw)3Ph,200 to 240V +- 10%(.37 to 11Kw)
Motor ControlScalar V/F
AC Input ChokesExternal to reduce THD in partial loads
Supply Voltage200 - 480 V
Output Frequency0 to 500 Hz
CommunicationProfibus,DeviceNet,CANopen,Modbus,Ethernet,Ethercat,Lonworks
ChopperBuilt In Brake chopper
EMC FilterExternal optional EMC Filter
AC output ChokesExternal to achieve longer motor cables
Inputs2 Analog and 5 Digital
Input Frequency48 to 63 Hz
Ambient Temperature-10 to 40 Deg C
AccessoriesB063-IP66/Ip67,J402-potentiometer,C169-Pressure compensation valve
Power Range0.37 to 22 kW
Outputs1 Analog,1Relay,1 Digital
Type of DriveGeneral Machinery Drive
Deg. Of ProtectionIP20/optional NEMA 1/UL Type 1Enclosure,IP66/67/UL Type 4X as an option up to 7.5kw
Output Voltage240/415/440/480 V

ACS 355 Drives are designed for the machine building sector. In serial type manufacturing the consumed time per unit is critical. The drive is designed to be the fastest drive in terms of installation, setting parameters and commissioning. The basic product has been made as user-friendly as possible, yet providing high intelligence. The drive offers diverse functionality to cater for the most demanding needs.
Features:
