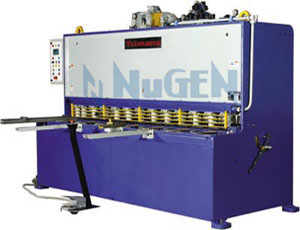

VARIABLE RAKE ANGLE NC HYDRAULIC SHEAR

VARIABLE RAKE ANGLE NC HYDRAULIC SHEAR

Listing ID #4253064

Get Latest Price
  • Capacity4 MM to 16 MM
  • Width2000 MM to 6000 MM
  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world

The machines are supplied with easy to use NC Controlled heavy duty back guage (Range 760 MM) with PLC based controller on years of manufacturing experience. The emphasis is on speed, accuracy and....
View More Details
Send Enquiry

Company Information

Nugen Machineries Limited
Changodar, Ahmedabad, Gujarat
View Number
  • Member Since 7 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

The machines are supplied with easy to use NC Controlled heavy duty back guage (Range 760 MM) with PLC based controller on years of manufacturing experience. The emphasis is on speed, accuracy and repeatability.



The general characteristics of the controller are Programming of axis position (mm), position correction, step repetition – 16 steps, each step can be repeated 99 times, Alphs – numeric LCD 2*16 display, protection against miscounting.

Short Facts:
Synchronization of cylinders by differential area principle eliminates complicated hydraulic circuits and imported servo valves.
The ram is guided by three point roller guides with replaceable hardened liners.

Variable rake angle adjustment by selector switch
Rapid blade gap adjustment by levers calibrated in thickness.
Table provided with hardnend transfer bars & front sheet supports for easy feeding of plates
Shadow light indicator, Front gauging by disappearing stoppers mounted on left squaring arm and motorized backgauge are provided.
Positive holding by hydraulic hold downs before shearing avoids slippage of sheets.
Hydraulic cylinder with imported sealing elements duly honed tubes and hard chrome plates rods offer very long service life.
NC Back Gauge
