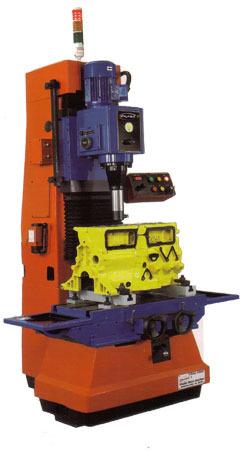

VBM-800 Vertical Boring Machine

₹ 5.50 Lakh / Unit

Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location India only

Our company is well versed with online as well as traditional payment methods. As per requirements of patrons, we can sign an agreement for payment with suitable terms and conditions. Carrying out systematic quality process at every stage, we keep our quality standards high to gain customers' satisfaction. VBM-800 Vertical Boring Machine has a protective polish on the surface, which provides excellent heat and chemical resistance.

Product Details

Specification

Boring Capacity (Standard)	–ø 38-ø 90 mm (1.5"-3.5")
Boring Capacity (Optional)	–ø 90-ø 150 mm (3.5"-6")
Spindle Speed (Variable)	–50-700 rpm
Spindle Feed (Variable)	–0.06 mm/Revolution
Max Boring Head Travels	–400 mm (15.7")
Max Distance from Spindle Center to Column	–270 mm (10.6")
Table Traverse (Longitudinal)	–700 mm (27.5")
Table Traverse (Crosswise)	–60 mm (2.3")
Working Table Size ( L x W)	–800 x 300 mm (31.5' x 11.8")
Spindle Motor Capacity	–0.75 kw/1 hp
Rapid Motor Capacity	–0.19 kw/0.25 hp
Height of Machine	–1900 mm (74.8")
Length of Machine	–1350 mm ( 53.1")
Width of Machine	–1100 mm (43.3")
Net Wt (Approx)	–1125 Kgs
Gross Wt (Approx)	–1425 K

Precision Fine Boring Machines

Setting up Parallel (70 mm)	01 pair.
Setting up Parallel (150 mm)	01 No.
Single Cylinder Block Clamping Device	01 No.
Boring spindle (dia 36)	01 No.
Spindle Centering Device ( dia 36)	01 No.
Boring Tool dia 12 x 35	01 No.
Boring Tool dia 12 x 45	01 No.
Boring spindle (dia 46)	01 No.
