Vector Inverter For Water Treatment and HVAC Systems

3-phase power supply: 400 V –15%…500 V +5% 50/60 Hz ± 5%
Motor ratings from 1.5 kW (2 Hp) to 1.2 MW (1600 Hp)

* 3-phase power supply: 690 V ± 10% 50/60 Hz ± 5%
Motor ratings from 75 kW to 1.2 MW

* Certification: CE UL and cUL

General characteristics:
• Control modes: Open-loop FOC, V/F
• Maximum output frequency 600 Hz
• Integrated choke DC side
• Integrated mains filter
• Integrated dynamic braking module (up to 75 kW)
• Light or heavy overload control
• Integration of up to 3 options onboard the drive
• “Safety Stop” card according to IEC 61508 SIL 3, EN 954-1 Cat. 3, EN 61508 and EN 61800-5-2
• Multi-language programming SW (10 languages)
• PLC with advanced IEC61131-3 programming environment
• Integrated basic PLC
• Alphanumerical programming keypad
• 2 bipolar analog inputs (Voltage/Current)
• 2 bipolar analog outputs (1: Voltage/Current, 1: Voltage)
• 6 digital inputs (PNP/NPN)
• 2 digital outputs (PNP/NPN)
• 2 relay outputs, single contact
• RS485 serial line (Modbus RTU)
• Interfacing with the most commonly-used fieldbus systems: ProfiBus,CANopen,DeviceNet, Ethernet/IP, Ethercat, BACnet, LonWorks
• IP20-rated protection

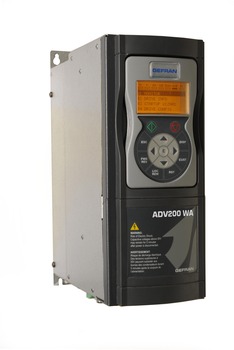

Gefran has applied its application experience to the new series of ADV200 WA industrial drive inverters for the Water Treatment and HVAC sectors.
Specific power structures for variable or quadratic loads, combined with intelligent optimisation of energy consumption and specialised functions, offer important advantages in terms of plant design and ease of startup as well as economic benefits.
Specific configurations and application macros and parameters in engineering units cater to the wide-ranging technological requirements of the Water Treatment and HVAC sectors and guarantee easy, intuitive installation and setup for users at any level.

Functions:
Self-tuning of speed-current-flux regulators and identification of motor data with motor idle or rotating
Quick startup menu
Instant overload up to 180%
I2t thermal protection for motor, drive and braking resistor
Multispeed function (16 programmable speeds)
4 independent ramps with jerk settings
Potentiometer function
Motor auto-capture function
Dual PID control with self-tuning
Dedicated water treatment functions
Dedicated HVAC functions
Integrated timers with Real Time Clock
Macros for specific applications (application pre-loaded)
Mains loss detection with: controlled stop and/or power optimisation
Variable switching frequency
Variable Torque and Constant Torque modes
MDPLC advanced development environment (according to IEC 61131-3)
Programming keypad with 5 complete sets of drive parameters.

Options:
I/O expansion cards, which can be combined according to machine requirements
Temperature sensor acquisition cards
Integrated fieldbus interface: ProfiBus, CANopen, DeviceNet, Ethernet/IP, Ethercat, BACnet, LonWorks
“Safety Stop” card according to IEC 61508, SIL 3, EN 954-1 Cat. 3, EN 61508 and EN 61800-5-2
Braking resistors (standard for the entire range)
Output chokes (standard for the entire range)

OPT-485-ADV, RS485 optoisolator for multidrop connections
EXP-IO-D6A4R1-ADV, I/O expansion card
EXP-IO-D5R8-ADV, I/O expansion card
EXP-IO-SENS-1000-ADV, Temperature sensor control card
EXP-IO-SENS-100-ADV, Temperature sensor control card
EXP-CAN-DN-ADV, CANopen/DeviceNet fieldbus interface card
EXP-PDP-ADV, Profibus DP fieldbus interface card
BUy, Braking Unit
Modbus RTU
KB-ADV Programming keypad remote control kit
