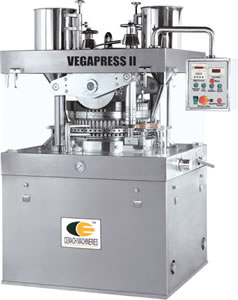

Contact SupplierVega Press II is a high speed double sided rotary press for high output tablet production. The Vega Press II combines in one machine the sophistication, which today's tableting requirements demand together with well proven mechanical design and components. Major improvements in the areas of sound reduction, operator safety, cleanliness and cleanability, drive arrangement and operational convenience make the machine a wonder to operate. The machine is offered in four models viz. 37, 45, 55 and 61 stations, to give output up to 7300 tablets per minute.
TECHNICAL SPECIFICATIONS | ||||
Type | VPD-37 | VPBII-45 | VPBBII-55 | VPBBII-61 |
No. of stations | 37 | 45 | 55 | 61 |
Type of tooling | D | B | BB | BB |
Max. Operating Pressure | 10 Ton | 6.5 Ton | 6.5 Ton | 6.5 Ton |
Max. Tablet Dia. | 23 mm (25.4 mm on demand) | 16 mm | 11 mm | 11 mm |
Depth of Fill | 20.5 mm | 17.5 mm | 17.5 mm | 17.5 mm |
Output Tablets / Hr.* | 87000 to 222000 | 96000 to 32400 | 120000 to 396000 | 132000 to 438000 |
Upper Punch Penetration | 3.2 to 8 mm | |||
Main Electric Motor | 7.5 kW / 10 Hp / 1440 RPM / 3 Ph | |||
Powder Feeder Motor | 0.19 kW / 0.25 Hp / 1440 RPM / 3 Ph |
