Venturi Steam Desuperheater

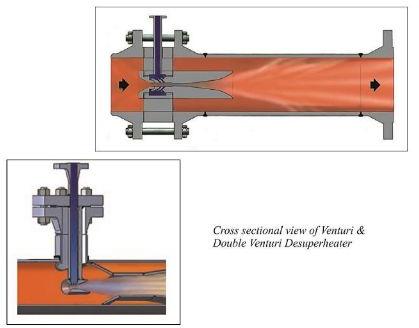

Jet Flow venturi desuperheaters consist of a Laval nozzle which utilises a part of the incoming steam flow to create a reduced pressure zone into which spray water is drawn and atomised by steam energy, and then exits in a short expanding throat which allows pressure recovery.The desuperheating performance remains constant at all loads from 100% or less, because of the atomising steam effect of the steam jet. The design is unique such that the spray water can be supplied at the same pressure as that of the steam pressure. High turndowns are possible depending uponinstallations.
