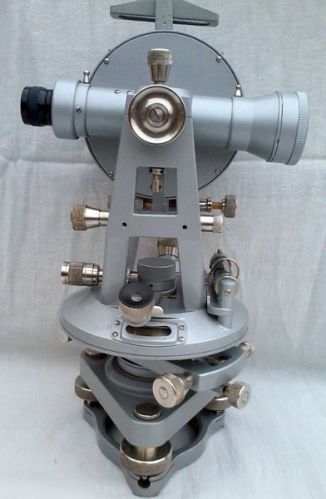

Vernier Transit Theodolite

Catering to the needs of the clients, we offer Vernier Transit Theodolite. Our Vernier Transit Theodolite is known for its excellent performance with a high degree of accuracy. Moreover, the Vernier Transit Theodolite has robust construction and high durability which has led to its high demand in the market. With its excellent performance, the cost-effectiveness of the Vernier Transit Theodolite acts as an add-on for the clients. ‘SNS’ Make Precision Direct Reading Vernier Transit Theodolite - (Special-Quality) Size 178mm, Internal focusing fitted with high quality Anti reflection Blue Coated Optics to give ERECT-IMAGE FOR DIRECT READING with achrometric eye-piece for bright and sharp image and with improved resolution. Made of Selected Brass and Gunmetal. Reading 10/20 Second accuracy. Confirming to I.S. Specifications No. 2988-1975, The Verniers and Circles are graduated on embedded ‘PURE-SILER’ provided for best accuracy and to minimize thermal expansion, Fitted with ‘OPTICAL- PLUMMET ’ fitted with eye – piece for rapid setting on a over Surveying point. Virgin Gunmetal axis set for long time reliability. The instrument is of self contained construction so that all the sensitive parts are protected from dust and moisture. Supplied in excellent finish with all standard accessories in a nicely padded and strong teak-wood case and provided with lock, along with Special powder coated Special Aluminium (Metallic) telescopic tripod Stand Packed in waterproof canvas cover. Accessories

• Disphargm Extractor
• Trough Compass
• Plumbob, Tommpy Pin
• Sun filter
• San shade Cover
• Screw Driver
• Cleaning brush

Technical Specifications General SpecificationImageERECTEquivalent Focal Length180mmMagnifications30 XEffective Aperture of Objective40mmField of View10 30’Shortest Focusing Distance1.3mtr.Longest Focusing Distance700’ Stadia Multiplying Constant1:100Stadia Additive Constant0 Horizontal Circles & Vertical CirclesDiameter of Horizontal Circle125mmDiameter of Vertical Circle100mmGraduation Interval1/60Reading with Vernier10’’Sensitivity of Levels Vertical Circle Level1/2” mmPlate Level45/2mm Optical PlummetMagnification3 XFocusing Range0.5m00Field of View70
