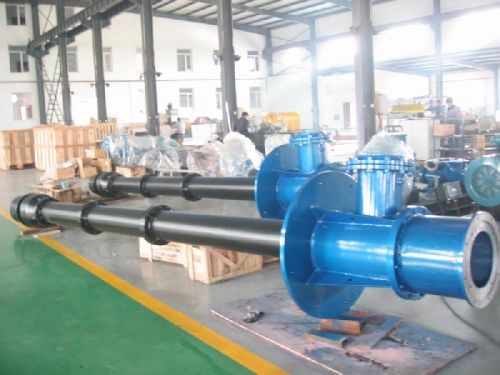

Vertical API610 Pump Model VS4

LYD pump were developed as single-stage, single-suction, vertical centrifugal pump, with enclosed impeller, pump design and fabrication according to standard GB5656-1994, the shaft was supported with plain bearings in the pump casing and bearing spiders; top bearing is SKF antifriction bearing,lubricated with Li-based grease; The pump is equipped with flexible coupling. Other details information and operating data see datasheets. Performance range Capacity(Q): 2-400m3h Head(H):5-100m Working temperature(T): -20℃ - 120℃ Application Thermal power plant Chemical plant Sewage treatment plant Refining steel rolling mill Paper mill Cement plant Structure 1.Shaft connected structure is safe and reliable. 2.The rotator parts could be axial adjustment 3.The roator parts adopts multipoint supporting so that the pump operation could be safe and reliable. 4.Sliding bearing adopts self-lubricating or outside lubricating. 5.When start up,the impeller is absolutely immersed in the medium, so the start-up is easy and there is no venting problem. 6.It adopts double volute casing (when the flange size is bigger than 80mm),it makes small radial force for rotator parts and small deflection for shaft. The sliding bearing will have small abrasion and long service life. 7.View from motor side, the pump rotation direction :CW Certifications CE ISO SGS Our Factory Pre-Sales Service * Inquiry and consulting support.  * Sample testing support.  * View our Factory. After-Sales Service *
