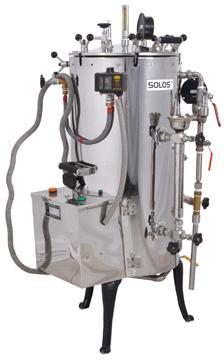

Vertical Autoclave Steam Storage

VERTICAL HIGH PRESSURE AUTOCLAVE – WITH STEAM STORAGE & DRYING SYSTEM- DELUXE MODEL

• Triple walled unit constructed out of heavy 304 grade stainless steel
• Unit has steam jacket, working chamber, outer insulation cover
• Steam storage model - subsequent sterilization can be in quick succession as steam generated is retained even when the inner chamber is opened
• Drying system - mechanical ejector system for drying the working chamber
• Hydraulic testing of jacket 2 times the working pressure
• Safety Devices: Pressure switch, safety valves, vacuum breaker, low water level cut-off
• Standard Features: Chamber condensate line with valve, steam release valve, pressure gauge, compound gauge, thermometer, sight glass, silicone gasket
• The CABINET MODEL comes with wheels
• Technical specification:
  Working Pressure: 1.2 kg/cm2 & 2.1kg /cm2
  Temperature: 121°C & 134°C
• VERTICAL HIGH PRESSURE AUTOCLAVE – WITH STEAM STORAGE & DRYING SYSTEM - ECONOMY MODEL
  Double walled unit constructed out of heavy 304 grade stainless steel
  • Unit has separate steam jacket below the working chamber and outer insulation cover
  • Steam block model - subsequent sterilization can be in quick succession as steam generated is retained in jacket even when the inner chamber is opened
  • Hydraulic testing of jacket 2 times the working pressure
  • Safety Devices: Pressure switch, safety valves, vacuum breaker, low water lever cut-off
  • Standard Features: Chamber condensate line with valve, steam release valve, pressure gauge, sight glass, gasket
  • The CABINET MODEL comes with wheels
  • Technical specification:
    Working Pressure: 1.2 kg/cm2 & 2.1kg /cm2
    Temperature: 121°C
