Vertical Bucket Elevator Used In Grain Silo System

vertical bucket elevator used in grain silo system







Vertical bucket elevator is used for grain transprotation, especially for vertical transportation of grain.

It is widely used in grain silo system, popular to fram, rice mill, flour mill, grain plant etc.

The capacity of bucket elevator ranges from 10ton per hour to 300ton per hour;

 It will depend on your practical use to choose the most suitable bucket elevator.

TDTG series bucket elevator is a kind of special equipment for continually and vertically deliver grains, which is widely used in different fields such as oil,feed,flour,seed starch, grain and so on. Taking advantage of the present bucket elevator situation both at home and abroad, we designed TDTG Series Bucket Elevator, which caught up the advanced national levels.



Advantage:

1.Having reasonable running structure, the coefficient of friction is large.

2.Adopting high-strength plastic bucket, which has long service time and large capacity.

3.With high strength polyester dustpan belt, strength of tensile is high, lower tensile rate, service time is long.

4.There is an anti pin organ in the machine. When the power is cut off and the bucket elevator suddenly stopped, materials won't fall back down from it, so it can reduce raking out. When we go to check, the strap won't reverse so it can insure the checker safe.



Elevator head wheel, with HDPE rubber, anti-wearing







Product Description





 3D drawing of grain bucket elevator:

Elevator is widely used in silo system, TSE company supply bucket elevator from 10t/h to 300t/h,

TSE grain bucket elevator is made as per China national standard or Austrilian standard.

Welcome to choose TSE grain bucket elevator.



Below show one complete silo project, elevator used for lifting grain to cleaner, silos etc.

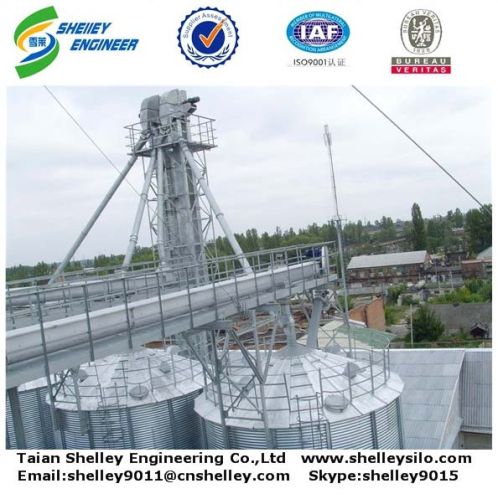

Actual elevator in silo project



For Grain bucket elevator in silo system, we supply platform which under the elevator head,

So customers can check the elevator motor convenience, and safety!

At the same time, we supply ebucket elevator tower and ladder, which can fix and support the high bucket elevator, and peope can walk to the elevator top easily!



Elevator tower and ladder:

Elevator platform and elevator head:





Elevator work in silo system:





  Contact Information







Contact Person:  Miranda Feng                          Skype:   shelley9015 Telephone:  0086-538-5367256 Mobilephone:  0086-18653877125 Fax:  0086-538-5367222 Address:  Steel Market Area,Daiyue Area,Taian city,Shandong Province, China Zip Code:  271000



Customer visit us and take photo of elevator:







If you have any interest around grain bucket elevator, please feel free to contact us.

We'll be happy to provide you with a detailed design and quotation according to you specific requirements.



 Welcome to visit us at any time!!!
