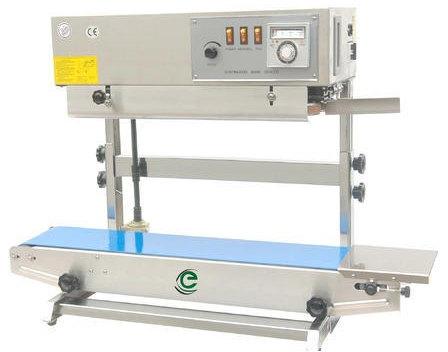

Vertical Continuous Sealing Machine

technical data  :  eminent bs-900w

 vertical  type continous band sealing
machine ( wide conveyor)

model:  eminent-bs-900w

• packing weight                                             - 5kg carrying load and 15kg conveyor load
• voltage(v/hz)                                               - 240/50
• power (w)                                                      - 750
• heat sealing power(w)                                - 220x2
• sealing speed    (m/min)                              -0-12
• sealing width                                                -8-12mm
• temp range(deg.c)                                     -0-300
• distance from sealing centre to conveying table(mm) :-150-270
• conveyor size(l x w)                                  -840 x 300
• film thickness(mm)                                     -0.08
• single conveyor loading(kg)                      -5kg
•  over all conveyor loading                        -15kg
•  dimension of machine(l*w*h)                 - 850x380x290
•  weight   -  32kg
