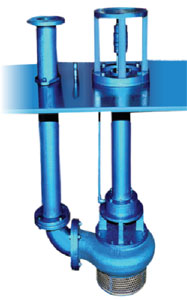

• Vertical wet pit type with Pump submerged and motor at the top coupled by extended shaft.
• Available in SS, Duplex steel, CI, Cast Steel and rubber lined constructions.
• Available for column length upto 3 mtrs.
• Heavy duty thrust bearing is used. Permanently lubricated durable lower bush bearing can be provided in Bronze, Teflon or Rubber etc. As per application.
• Additional Intermediate bush bearing is provided after every one meter column length.
• Ideal for handling liquid at high temperature or which are corrosive or inflamable.
• Chokeless, screen less, and glandless pump with non-clog impeller.
• Vertical flange mounted motor as prime mover
| Model | Outlet Size in Inches / mm | Solid handling in mm | Capacity LPM | Head in mtrs. Max. | HP | RPM |
| VEP-40 | 1 ½/40 | 25 | 50 - 400 | 11 | ¼ to 1 ½ | 1450 |
| VEP-40(H) | 1 ½/40 | 25 | 100-900 | 48 | 3 to 10 | 2900 |
| VEP-75 | 3 / 75 | 38 | 75-1000 | 21 | 1 to 7.5 | 1450 |
| VEP-75(D) | 3 / 75 | 25 | 75- 1300 | 22 | 1 to 10 | 1450 |
| VEP-100 | 4 / 100 | 70 | 100-1900 | 16 | 2 to 10 | 1450 |
| VEP-100(D) | 4 / 100 | 63 | 150-2200 | 25 | 2 to 15 | 1450 |
| VEP-150 | 6 / 150 | 78 | 1000-4500 | 40 | 15 to 40 | 1450 |
| VEP-150(H) | 6 / 150 | 25 | 1000-5500 | 80 | 15 to 75 | 2800 |
